5-Flx-Thane-MD-25 Flexaust Flx-Thane MD 5 inch Material Handling Duct Hose - 25ft
5-Flx-Thane-MD-25 Flexaust Flx-Thane MD 5 inch Material Handling Duct Hose - 25ft
5-Flx-Thane-MD-25 Flexaust Flx-Thane MD 5 inch Material Handling Duct Hose - 25ft
5-Flx-Thane-MD-25 Flexaust Flx-Thane MD 5 inch Material Handling Duct Hose - 25ft

5-Flx-Thane-MD-25 by Flexaust | Flx-Thane MD | Material Handling Duct Hose | 5 inch | 25ft

$472.08 - $472.08
$472.08
$283.25
$283.25 - $283.25
$283.25

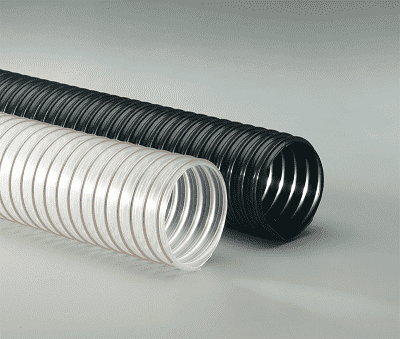

Flexaust Flexadux Flx-Thane® MD Medium weight black or clear polyurethane hose reinforced with a bronze coated spring steel wire helix.
Specifications for Variant SKU: 5-Flx-Thane-MD-25-Clear Flexaust | 25 |
Brand: Flexadux PU
Series: Flx-Thane MD
Hose Color(s): Black, Clear/Semi-Clear
Internal Diameter: 5in
Tubing Construction: Polyurethane

SPECIFICATIONS

Applications: Agricultural, Concrete Transport, Dust Collection, Fertilizer Broadcasting, Food Grade, Foundry Sand Transfer, Jet Fuel Vapor Venting, Landfill Venting, Waste Disposal, Street & Parking Lot Sweepers SAE Rating: N/A
Other Ratings: N/A Tube: Medium weight black or clear polyurethane
Reinforcement: Bronze coated spring steel wire helix Cover: N/A
Temperature Range: -65 deg. F to 225 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Good compressibility.
  • Great abrasion resistance & high tear strength.
  • Superior chemical resistance.
  • Excellent flexibility.
  • Designed for applications with wide temperature ranges.
  • Very good low temperature flexibility.
  • Clear is manufactured with FDA acceptable materials.
Part Number 25 ft Reels Part Number 50 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft) Weight - 50ft (Lbs/Ft)
Flx-Thane MD 2in Flx-Thane MD 2in 2" .030" 2" 3:1 29 30 6.25 lbs 12.5 lbs
Flx-Thane MD 2.5in Flx-Thane MD 2.5in 2.5" .030" 2.5" 3:1 29 30 8 lbs 16 lbs
Flx-Thane MD 3in Flx-Thane MD 3in 3" .030" 3" 3:1 29 29 10 lbs 20 lbs
Flx-Thane MD 3.5in Flx-Thane MD 3.5in 3.5" .030" 3.5" 3:1 22 28 13 lbs 26 lbs
Flx-Thane MD 4in Flx-Thane MD 4in 4" .030" 4" 3:1 29 25 17.5 lbs 35 lbs
Flx-Thane MD 4.5in Flx-Thane MD 4.5in 4.5" N/A N/A N/A N/A N/A N/A N/A
Flx-Thane MD 5in Flx-Thane MD 5in 5" .030" 5" 3:1 17 22 22.5 lbs 45 lbs
Flx-Thane MD 5.5in Flx-Thane MD 5.5in 5.5" N/A N/A N/A N/A N/A N/A N/A
Flx-Thane MD 6in Flx-Thane MD 6in 6" .030" 6" 3:1 15 19 25 lbs 50 lbs
Flx-Thane MD 7in Flx-Thane MD 7in 7" .030" 7 3:1 12 16 30 lbs 60 lbs
Flx-Thane MD 8in Flx-Thane MD 8in 8" .030" 8" 3:1 9 14 37.5 lbs 75 lbs
Flx-Thane MD 9in Flx-Thane MD 9in 9" .030" 9" 3:1 5 12 38.75 lbs 77.5 lbs
Flx-Thane MD 10in Flx-Thane MD 10in 10" .030" 8" 3:1 4 11 40 lbs 80 lbs
Flx-Thane MD 12in Flx-Thane MD 12in 12" .030" 10" 3:1 2.2 10 50 lbs 100 lbs
Flx-Thane MD 14in Flx-Thane MD 14in 14" .030" 12" 3:1 3.3 8 62.5 lbs 125 lbs
Flx-Thane MD 16in Flx-Thane MD 16in 16" .030" 14" 3:1 2.2 7 75 lbs 150 lbs
Flx-Thane MD 18in Flx-Thane MD 18in 18" .030" 16" 3:1 1.4 6 82.5 lbs 165 lbs
Flx-Thane MD 20in Flx-Thane MD 20in 20" .030" 18" 3:1 1 5.5 92.5 lbs 185 lbs
Flx-Thane MD 22in Flx-Thane MD 22in 22" .030" 20" 3:1 .9 5 102.5 lbs 205 lbs
Flx-Thane MD 24in Flx-Thane MD 24in 24" .030" 22" 3:1 .75 4 112.5 lbs 225 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
