16-Flx-Thane-VHD-25 Flexaust Flx-Thane VHD 16 inch Material Handling Duct Hose - 25ft

16-Flx-Thane-VHD-25 by Flexaust | Flx-Thane VHD | Material Handling Duct Hose | 16 inch | 25ft

$2,280.83 - $2,280.83
$2,280.83
$1,368.50
$1,368.50 - $1,368.50
$1,368.50

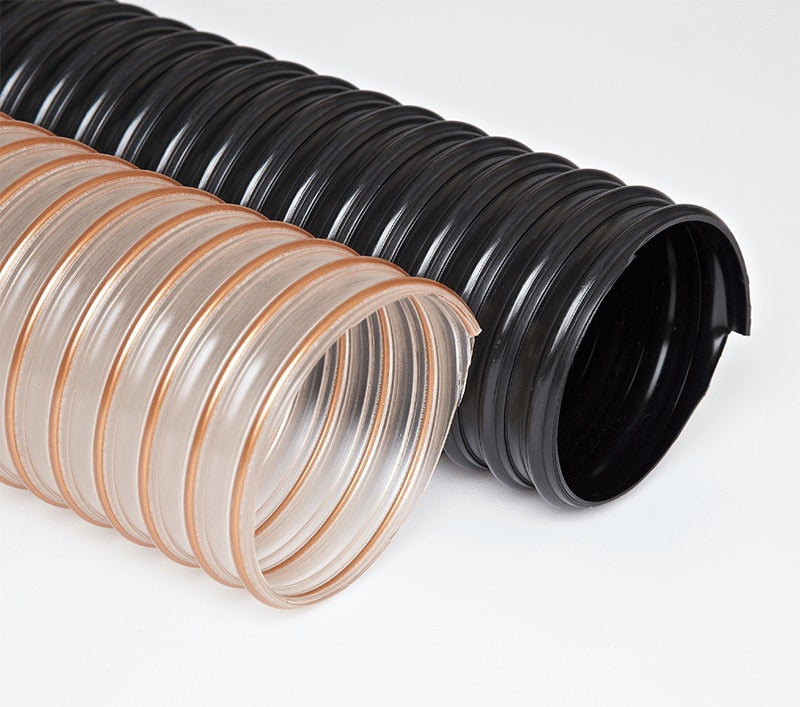

Flexaust Flexadux Flx-Thane® VHD Very heavy weight clear or black polyurethane hose reinforced with a bronze coated spring steel wire helix. (Sizes 14" I.D. & above not available with a coated wire)
Specifications for Variant SKU: 16-Flx-Thane-VHD-25-Black Flexaust | 25 |
Brand: Flexadux PU
Series: Flx-Thane VHD
Hose Color(s): Black
Internal Diameter: 16in
Tubing Construction: Polyurethane

SPECIFICATIONS

Applications: Agricultural, Concrete Transport, Food Grade, Lawn & Leaf Collection, Paper Mills, Street & Parking Lot Sweepers SAE Rating: N/A
Other Ratings: N/A Tube: Very heavy weight clear or black polyurethane
Reinforcement: Bronze coated spring steel wire helix (Sizes 14" I.D. & above not available with a coated wire.) Cover: N/A
Temperature Range: -65 deg. F to 225 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Great abrasion resistance & high tear strength.
  • Superior chemical resistance.
  • Excellent flexibility.
  • Designed for applications with wide temperature ranges.
  • Ideal for severe service applications.
  • Very good low temperature flexibility.
  • Clear is manufactured with FDA acceptable materials.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
Flx-Thane VHD 4in 4" .060" 4" 2:1 29 34 25 lbs
Flx-Thane VHD 5in 5" .060" 5" 2:1 17 33 32.5 lbs
Flx-Thane VHD 6in 6" .060" 6" 2:1 15 32 37.5 lbs
Flx-Thane VHD 8in 8" .060" 8" 2:1 9 29 47.5 lbs
Flx-Thane VHD 10in 10" .060" 10" 2:1 4 25 55 lbs
Flx-Thane VHD 12in 12" .060" 12" 2:1 2.5 20 65 lbs
Flx-Thane VHD 14in 14" .060" 14" 2:1 3.5 18 95 lbs
Flx-Thane VHD 16in 16" .060" 16" 2:1 2.5 15 105 lbs
Flx-Thane VHD 18in 18" .060" 18" 2:1 1.5 12 120 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
