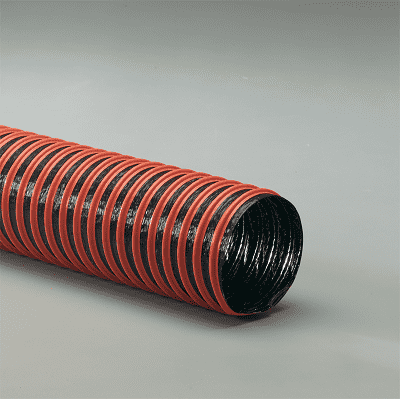

7-FSP-2-25 Flexaust #2480700025 FSP-2 (FSP2) 7 inch Dust Duct Hose - 25ft

  • $270.33

SPECIFICATIONS

Applications: Air Duct Cleaning, Flame Retardant, Foundry Sand Transfer, Grinders, Lav Waste Disposal, Ozone, Sheet Metal, Shipyards, Straw Blowing SAE Rating: N/A
Other Ratings: N/A Tube: Double-ply black PVC vinyl coated polyester fabric
Reinforcement: Spring steel wire helix & orange external PVC wearstrip Cover: N/A
Temperature Range: -20 deg. F to 180 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Wearstrip offers additional external brasion & drag resistance.
  • Great moisture, mildew, & chemical resistance.
  • Low friction loss.
  • Listed as UL 94V-0 flame retardant.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
FSP-2 3in 3" N/A 2.8" 3:1 29 13 12.5 lbs
FSP-2 4in 4" N/A 3.7" 3:1 24 10 18 lbs
FSP-2 5in 5" N/A 4.7" 3:1 13 8 22.25 lbs
FSP-2 6in 6" N/A 5.3" 3.5:1 7.3 7 26.5 lbs
FSP-2 7in 7" N/A 6.5" 3.5:1 5 6 31 lbs
FSP-2 8in 8" N/A 6.9" 3.5:1 7 4 37 lbs
FSP-2 10in 10" N/A 8.6" 3.5:1 3.7 3 46 lbs
FSP-2 12in 12" N/A 10" 3.5:1 2.2 2.6 55 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
