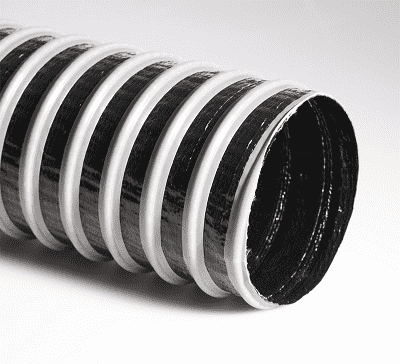

22-FSP-Bridge-25 Flexaust #2502200025 FSP Bridge 22 inch Dust and Material Handling Duct Hose - 25ft

  • $759.00

SPECIFICATIONS

Applications: Agricultural, Bridge Cleaning Filtering, Concrete Transport, Paper Mills, Street & Parking Lot Sweepers SAE Rating: N/A
Other Ratings: N/A Tube: Double-ply black PVC vinyl coated polyester fabric
Reinforcement: Spring steel wire helix & gray external PVC wearstrip Cover: N/A
Temperature Range: -20 deg. F to 180 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Wearstrip offers additional external abrasion & drag resistance.
  • Great moisture, mildew, & chemical resistance.
  • Low friction loss.
  • Manufactured with flame retardant materials.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
FSP Bridge 12in 12" N/A" 11" 4:1 8 2 55 lbs
FSP Bridge 14in 14" N/A 12" 4:1 3 4 67.5 lbs
FSP Bridge 16in 16" N/A 14" 4:1 5 2 75 lbs
FSP Bridge 18in 18" N/A 16" 4:1 2 3 92.5 lbs
FSP Bridge 20in 20" N/A 17" 4:1 1 2 95 lbs
FSP Bridge 22in 22" N/A 19" 4:1 1 2 105 lbs
FSP Bridge 24in 24" N/A 21" 4:1 .6 1.8 112.5 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
