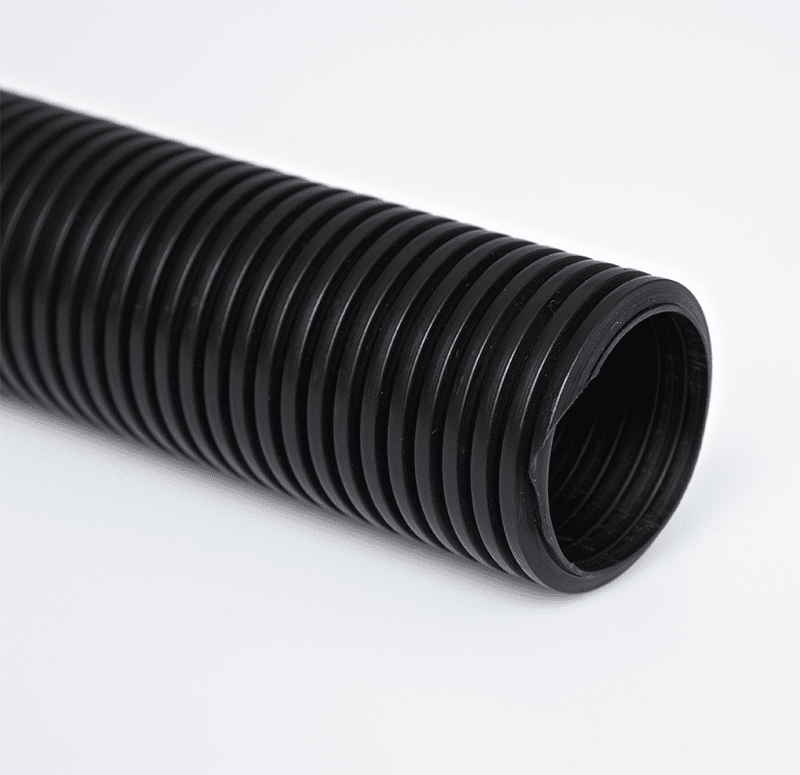

1-Genesis-StatPath-25 Flexaust #5961000125 Genesis StatPath 1 inch Material Handling Duct Hose - 25ft

1-Genesis-StatPath-25 by Flexaust | #5961000125 | Genesis StatPath | Material Handling Duct Hose | 1 inch | 25ft

Save $5.33 Save $5.33
$53.33
$53.33 - $53.33
$53.33
$48.00
$48.00 - $48.00
$48.00

Flexaust Genesis® StatPath® Material Handling Duct Hose Light weight black polyethylene conductive copolymer hose reinforced with an integral polyethylene helix.

Package Quantity: 25 FT

Specifications for Variant SKU: 1-Genesis-StatPath-25 Flexaust | 25 |
Brand: Genesis
Series: StatPath
Hose Color(s): Black
Internal Diameter: 1in
Tubing Construction: Polyethylene
Special Properties: Conductive Tube, Outer Helix Protection

SPECIFICATIONS

Applications: Auto Tellers, Bus Ventilation, Industrial Vacuum Cleaners, Paper Trim Conduit, Printing, Sprayers, Static Control SAE Rating: N/A
Other Ratings: N/A Tube: Light weight black polyethylene conductive copolymer
Reinforcement: Integral polyethylene helix Cover: N/A
Temperature Range: -40 deg. F to 140 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Conductive.
  • Surface Resistivity Level: 103-105 Ohms/Square.
  • Smooth interior assures efficient air flow.
  • Ideal for industrial vacuum & light bulk material applications where static may be an issue.
  • Superior external abrasion resistance.
  • Crush resistant.
Part Number 25 ft Reels Part Number 50 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft) Weight - 50ft (Lbs/Ft)
StatPath 1in StatPath 1in 1" N/A N/A N/A N/A N/A N/A N/A
StatPath 1.25in StatPath 1.25in 1.25" N/A 2.5" N/A 29 20 5.75 lbs 11.5 lbs
StatPath 1.5in StatPath 1.5in 1.5" N/A 3.25" N/A 29 18 7 lbs 14 lbs
StatPath 2in StatPath 2in 2" N/A 4.5" N/A 29 15 12 lbs 24 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
