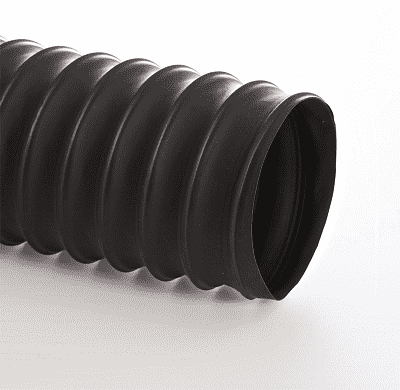

10-LT-25 Flexaust LT 10 inch Air and Fume Duct Hose - 25ft

10-LT-25 by Flexaust | #8411100025 | LT | Air and Fume Duct Hose | 10 inch | 25ft

Save $185.50

$463.75

$463.75 - $463.75

$463.75

$278.25

$278.25 - $278.25

$278.25

Flexaust Flexadux LT Air and Fume Duct Hose Light weight black thermoplastic rubber hose reinforced with a spring steel wire helix.

Package Quantity: 25 FT

Specifications for Variant SKU: 10-LT-25 Flexaust \| 25 \|
Brand:	Flexadux TR
Series:	LT
Hose Color(s):	Black
Internal Diameter:	10in
Tubing Construction:	Thermoplastic Rubber

SPECIFICATIONS

Other Features:
Applications:	Bus Ventilation, Dry Cleaning, Pipe Organs, Race Car Helmet Ventilation, Stereo Speakers, Transmission Cooling	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Light weight black thermoplastic rubber
Reinforcement:	Spring steel wire helix	Cover:	N/A
Temperature Range:	-60 deg. F to 275 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A
Excellent compressibility & flexibility. Designed for applications with wide temperature ranges. Great moisture & UV resistance. Excellent chemical resistance. Smooth interior assures minimal friction loss & efficient air flow.

Part Number 25 ft Reels	Part Number 50 ft Reels	Inside Diameter	Wall Thickness (In)	Centerline Bend Radius (In)	Compression Ratio	Negative Pressure (In/Hg)	Working Pressure (PSI)	Weight - 25ft (Lbs/Ft)	Weight - 50ft (Lbs/Ft)
LT 1.5in	LT 1.5in	1.5"	.020"	1.08"	5:1	29	16	3.5 lbs	7 lbs
LT 2in	LT 2in	2"	.020"	2"	5:1	29	12	4.5 lbs	9 lbs
LT 2.5in	LT 2.5in	2.5"	.020"	2.46"	5:1	19	9	5.25 lbs	10.5 lbs
LT 3in	LT 3in	3"	.020"	2.92"	5:1	11	7.7	6 lbs	12 lbs
LT 4in	LT 4in	4"	.020"	3.58"	8:1	9	5.1	7.75 lbs	15.5 lbs
LT 5in	LT 5in	5"	.020"	3.79"	8:1	4.7	4.1	9.75 lbs	19.5 lbs
LT 6in	LT 6in	6"	.020"	4"	8:1	2.7	3.4	11.5 lbs	23 lbs
LT 7in	LT 7in	7"	.020"	4.25"	8:1	2.8	2.4	12 lbs	24 lbs
LT 8in	LT 8in	8"	.020"	4.5"	8:1	1.9	2.1	14 lbs	28 lbs
LT 10in	LT 10in	10"	.020"	5.8"	8:1	1	1.7	17.25 lbs	34.5 lbs
LT 12in	LT 12in	12"	.020"	7"	8:1	.6	1.4	21 lbs	42 lbs
LT 14in	LT 14in	14"	.020"	8.1"	8:1	.4	1.2	24.25 lbs	48.5 lbs
LT 16in	LT 16in	16"	.020"	9.3"	8:1	.24	1.07	27.5 lbs	55 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
