5-LT-25 Flexaust LT 5 inch Air and Fume Duct Hose - 25ft
5-LT-25 Flexaust LT 5 inch Air and Fume Duct Hose - 25ft
5-LT-25 Flexaust LT 5 inch Air and Fume Duct Hose - 25ft
5-LT-25 Flexaust LT 5 inch Air and Fume Duct Hose - 25ft

5-LT-25 by Flexaust | #8411050025 | LT | Air and Fume Duct Hose | 5 inch | 25ft

Save $16.48 Save $16.48
$164.81
$164.81 - $164.81
$164.81
$148.33
$148.33 - $148.33
$148.33

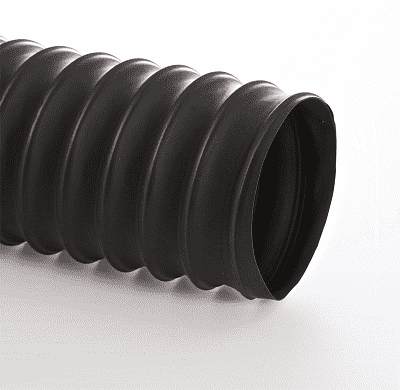

Flexaust Flexadux LT Air and Fume Duct Hose Light weight black thermoplastic rubber hose reinforced with a spring steel wire helix.

Package Quantity: 25 FT

Specifications for Variant SKU: 5-LT-25 Flexaust | 25 |
Brand: Flexadux TR
Series: LT
Hose Color(s): Black
Internal Diameter: 5in
Tubing Construction: Thermoplastic Rubber

SPECIFICATIONS

Applications: Bus Ventilation, Dry Cleaning, Pipe Organs, Race Car Helmet Ventilation, Stereo Speakers, Transmission Cooling SAE Rating: N/A
Other Ratings: N/A Tube: Light weight black thermoplastic rubber
Reinforcement: Spring steel wire helix Cover: N/A
Temperature Range: -60 deg. F to 275 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Excellent compressibility & flexibility.
  • Designed for applications with wide temperature ranges.
  • Great moisture & UV resistance.
  • Excellent chemical resistance.
  • Smooth interior assures minimal friction loss & efficient air flow.
Part Number 25 ft Reels Part Number 50 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft) Weight - 50ft (Lbs/Ft)
LT 1.5in LT 1.5in 1.5" .020" 1.08" 5:1 29 16 3.5 lbs 7 lbs
LT 2in LT 2in 2" .020" 2" 5:1 29 12 4.5 lbs 9 lbs
LT 2.5in LT 2.5in 2.5" .020" 2.46" 5:1 19 9 5.25 lbs 10.5 lbs
LT 3in LT 3in 3" .020" 2.92" 5:1 11 7.7 6 lbs 12 lbs
LT 4in LT 4in 4" .020" 3.58" 8:1 9 5.1 7.75 lbs 15.5 lbs
LT 5in LT 5in 5" .020" 3.79" 8:1 4.7 4.1 9.75 lbs 19.5 lbs
LT 6in LT 6in 6" .020" 4" 8:1 2.7 3.4 11.5 lbs 23 lbs
LT 7in LT 7in 7" .020" 4.25" 8:1 2.8 2.4 12 lbs 24 lbs
LT 8in LT 8in 8" .020" 4.5" 8:1 1.9 2.1 14 lbs 28 lbs
LT 10in LT 10in 10" .020" 5.8" 8:1 1 1.7 17.25 lbs 34.5 lbs
LT 12in LT 12in 12" .020" 7" 8:1 .6 1.4 21 lbs 42 lbs
LT 14in LT 14in 14" .020" 8.1" 8:1 .4 1.2 24.25 lbs 48.5 lbs
LT 16in LT 16in 16" .020" 9.3" 8:1 .24 1.07 27.5 lbs 55 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
