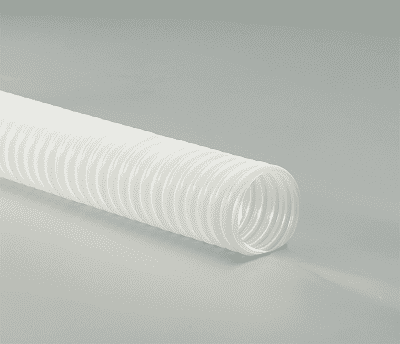

2.5-Mark-2-25 Flexaust #7025021025 Mark 2 - 2.5 inch Material Handling Duct Hose - 25ft

  • $86.67

SPECIFICATIONS

Applications: Agricultural, Fertilizer Broadcasting, Food Grade, Insulation Blowing & Removal SAE Rating: N/A
Other Ratings: N/A Tube: Medium weight clear polyethylene
Reinforcement: Translucent integral polyethylene helix Cover: N/A
Temperature Range: -40 deg. F to 140 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Ideal for insulation blowing applications
  • Easy to handle.
  • Translucent walls offer easy monitoring of material flow and blockage.
  • Convoluted interior design creates efficient air flow that aerates insulation materials & increases machine efficiency with regard to coverage & density.
  • Crush resistant.
  • Manufactured with FDA acceptable materials.
Part Number 25 ft Reels Part Number 50 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft) Weight - 50ft (Lbs/Ft)
Mark 2 - 1.5in Mark 2 - 1.5in 1.5" N/A 2.2" N/A 29 16 4.5 lbs 9 lbs
Mark 2 - 2in Mark 2 - 2in 2" N/A 3.5" N/A 29 14 5.75 lbs 11.5 lbs
Mark 2 - 2.5in Mark 2 - 2.5in 2.5" N/A 4" N/A 14 13.5 8.75 lbs 17.5 lbs
Mark 2 - 3in Mark 2 - 3in 3" N/A 5" N/A 9 12 10.5 lbs 21 lbs
Mark 2 - 3.5in Mark 2 - 3.5in 3.5" N/A 6" N/A 6 11 11.25 lbs 22.50 lbs
Mark 2 - 4in Mark 2 - 4in 4" N/A 6.25" N/A 4 10 13.75 lbs 27.5 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
