1.75-MG-V-50 Flexaust #MGV-R175050G-R MG-V 1.75 inch Air, Fume, Dust, and Material Handling Duct Hose - 50ft

1.75-MG-V-50 by Flexaust | #MGV-R175050 | G-R MG-V Series | Air, Fume, Dust, and Material Handling Duct Hose | 1.75 inch | 50ft

Save $15.48

$154.81

$154.81 - $154.81

$154.81

$139.33

$139.33 - $139.33

$139.33

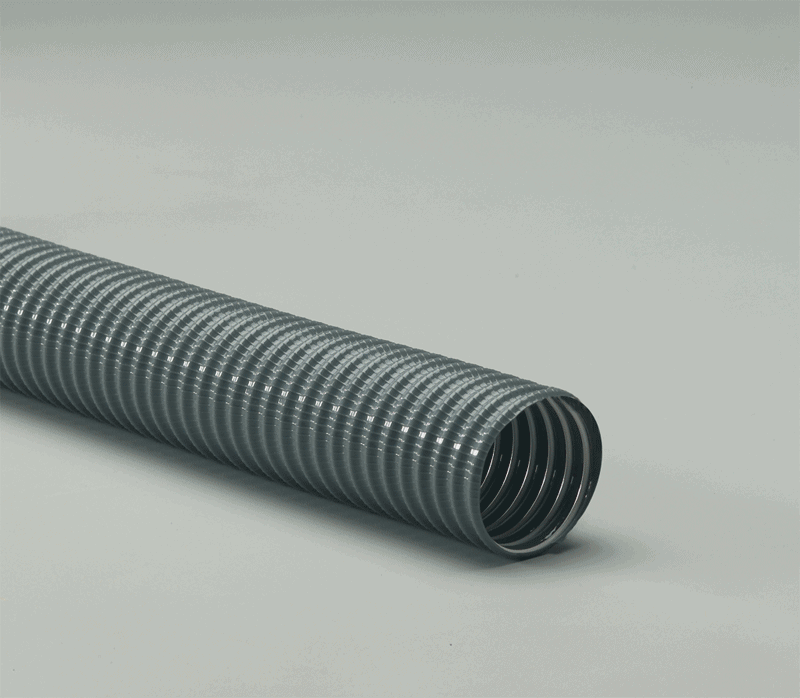

Flexaust Dayflex MG-V (MGV) Air, Fume, Dust, and Material Handling Duct Hose Gray PVC hose reinforced with a vinyl coated spring steel wire helix

Package Quantity: 50 FT

Quantity

Specifications for Variant SKU: 1.75-MG-V-50 Flexaust \| 50 \|
Brand:	Dayflex
Series:	MG-V
Hose Color(s):	Grey
Internal Diameter:	1.75in
Tubing Construction:	PVC

SPECIFICATIONS

Other Features:
Applications:	Cab Ventilation, Circuit Board Cooling, Flight Simulators, Pet Grooming Equipment, Printing, Race Car Helmet Ventilation, Residential Vacuum Cleaners, Stretch Hose	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Gray PVC
Reinforcement:	Vinyl coated spring steel wire helix	Cover:	N/A
Temperature Range:	-10 deg. F to 160 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A
Light weight & flexible. Good chemical resistance. Popular choice for floor care industry & general industrial vacuum applications.

Part Number 50 ft Reels	Inside Diameter	Wall Thickness (In)	Centerline Bend Radius (In)	Compression Ratio	Negative Pressure (In/Hg)	Working Pressure (PSI)	Weight - 50ft (Lbs/Ft)
MG-V .75in	.75"	N/A	.875"	1.6:1	29	15	5.5 lbs
MG-V 1in	1"	N/A	1"	1.6:1	29	15	7.5 lbs
MG-V 1.25in	1.25"	N/A	1.25"	1.6:1	29	15	9 lbs
MG-V 1.5in	1.5"	N/A	1.625"	1.6:1	29	15	11.5 lbs
MG-V 1.75in	1.75"	N/A	N/A	N/A	N/A	N/A	N/A
MG-V 2in	2"	N/A	2.3"	1.6:1	29	15	17.5 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
