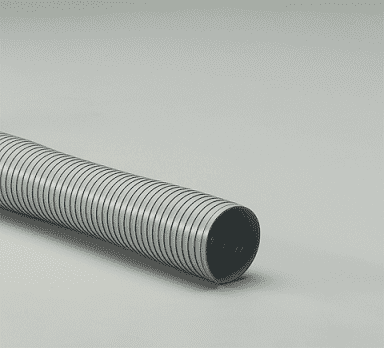

3.5-Pliaduct-25 Flexaust Pliaduct 3.5 inch Air and Fume Duct Hose - 25ft
3.5-Pliaduct-25 Flexaust Pliaduct 3.5 inch Air and Fume Duct Hose - 25ft
3.5-Pliaduct-25 Flexaust Pliaduct 3.5 inch Air and Fume Duct Hose - 25ft
3.5-Pliaduct-25 Flexaust Pliaduct 3.5 inch Air and Fume Duct Hose - 25ft

3.5-Pliaduct-25 by Flexaust | #7907-350025 | Pliaduct | Air and Fume Duct Hose | 3.5 inch | 25ft

Save $220.17 Save $220.17
$550.42
$550.42 - $550.42
$550.42
$330.25
$330.25 - $330.25
$330.25

Flexaust Dayflex Pliaduct Air and Fume Duct Hose 100% rigid self-supporting gray PVC material with a ribbon-lock construction

Package Quantity: 25 FT

Specifications for Variant SKU: 3.5-Pliaduct-25 Flexaust | 25 |
Brand: Dayflex
Series: Pliaduct
Hose Color(s): Grey
Internal Diameter: 3.50in
Tubing Construction: PVC

SPECIFICATIONS

Applications: Pollution Control SAE Rating: N/A
Other Ratings: N/A Tube: Gray PVC
Reinforcement: 100% rigid self-supporting Cover: N/A
Temperature Range: -10 deg. F to 150 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Diameter is adjustable by hand & can be reduced or expanded by approximately 25% of original I.D.
  • Chemical resistant.
  • May be shaped & reshaped & spliced together without special tools.
  • Excellent for either temporary or permanent installation.
  • Manufactured with flame retardant materials.
Part Number 10 ft Reels Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 10ft (Lbs/Ft) Weight - 25ft (Lbs/Ft)
- Pliaduct 2in 2" N/A 5.2" N/A 6.617 2.5 N/A 7.5 lbs
- Pliaduct 2.5in 2.5" N/A 6.3" N/A 6.617 2.5 N/A 10 lbs
- Pliaduct 3in 3" N/A 7.5" N/A 6.617 2.5 N/A 12.5 lbs
- Pliaduct 3.5in 3.5" N/A 8.3" N/A 6.617 2.5 N/A 12.75 lbs
- Pliaduct 4in 4" N/A 9" N/A 6.617 2.5 N/A 17.5 lbs
- Pliaduct 4.5in 4.5" N/A 9.8" N/A 6.617 2.5 N/A 20 lbs
- Pliaduct 5in 5" N/A 11" N/A 5.882 2.5 N/A 22.5 lbs
- Pliaduct 6in 6" N/A 12.5" N/A 4.411 2.5 N/A 27.5 lbs
Pliaduct 8in - 8" N/A 17" N/A 3.676 2 15.2 lbs N/A

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
