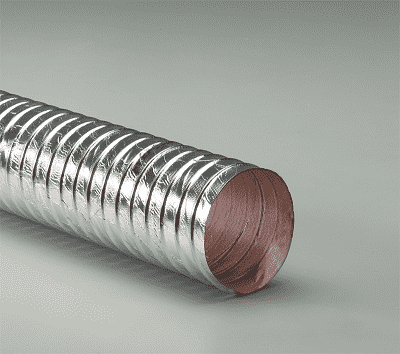

2.5-RaceFlex-12 Flexaust #2750250012 RaceFlex 2.5 inch Air and Fume Duct Hose - 12ft

  • $252.16

SPECIFICATIONS

Applications: Aerospace, Brake Ducting, Transmission Cooling SAE Rating: N/A
Other Ratings: N/A Tube: Light weight silver laminate of fiberglass & vacuum metallized polyester film
Reinforcement: N/A Cover: N/A
Temperature Range: -65 deg. F to 625 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Heat reflective to 625 deg. F.
  • Light weight & flexible.
  • Smooth bend radius.
  • 2.64-inch compression per foot of hose.
  • Designed for brake ducting & ventilation of drive compartments in racecars.
Part Number 12 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 12ft (Lbs/Ft)
RaceFlex 1.5in 1.5" N/A 1.13" 3:1 29 30 2.16 lbs
RaceFlex 2in 2" N/A 1.58" 3:1 29 30 3 lbs
RaceFlex 2.5in 2.5" N/A N/A N/A N/A N/A N/A
RaceFlex 3in 3" N/A 2.375" 4:1 29 30 3.828 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
