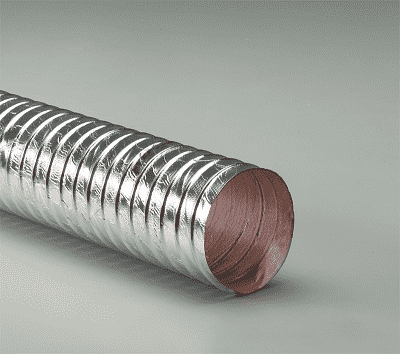

2-RaceFlex-12 Flexaust RaceFlex 2 inch Air and Fume Duct Hose - 12ft

2-RaceFlex-12 by Flexaust | #2750200012 | RaceFlex | Air and Fume Duct Hose | 2 inch | 12ft

Save $186.16

$465.40

$465.40 - $465.40

$465.40

$279.24

$279.24 - $279.24

$279.24

Flexaust Heat-Flex Raceflex Air and Fume Duct Hose Light weight silver laminate of fiberglass & vacuum metallized polyester film

Package Quantity: 12 FT

Specifications for Variant SKU: 2-RaceFlex-12 Flexaust \| 12 \|
Brand:	Heat-Flex
Series:	RaceFlex
Hose Color(s):	Metallic
Internal Diameter:	2in

SPECIFICATIONS

Other Features:
Applications:	Aerospace, Brake Ducting, Transmission Cooling	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Light weight silver laminate of fiberglass & vacuum metallized polyester film
Reinforcement:	N/A	Cover:	N/A
Temperature Range:	-65 deg. F to 625 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A
Heat reflective to 625 deg. F. Light weight & flexible. Smooth bend radius. 2.64-inch compression per foot of hose. Designed for brake ducting & ventilation of drive compartments in racecars.

Part Number 12 ft Reels	Inside Diameter	Wall Thickness (In)	Centerline Bend Radius (In)	Compression Ratio	Negative Pressure (In/Hg)	Working Pressure (PSI)	Weight - 12ft (Lbs/Ft)
RaceFlex 1.5in	1.5"	N/A	1.13"	3:1	29	30	2.16 lbs
RaceFlex 2in	2"	N/A	1.58"	3:1	29	30	3 lbs
RaceFlex 2.5in	2.5"	N/A	N/A	N/A	N/A	N/A	N/A
RaceFlex 3in	3"	N/A	2.375"	4:1	29	30	3.828 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
