12-Sto-Sack-15 Flexaust #STOSACK1215 Sto-Sack 12 inch Air Duct Hose - 15ft

  • $334.37

SPECIFICATIONS

Applications: A/C Ventilation, Chiller, Confined Space Ventilation, Dehumidification, Fans & Blowers, Function Tent HVAC, Humidity Control, Laser Engraving, Safety Equipment, Smoke Ejectors, Utility Blowers, Ventilation SAE Rating: N/A
Other Ratings: N/A Tube: Single-ply yellow PVC vinyl coated polyester fabric
Reinforcement: Spring steel wire helix & black external PVC wearstrip Cover: N/A
Temperature Range: -20 deg. F to 180 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:

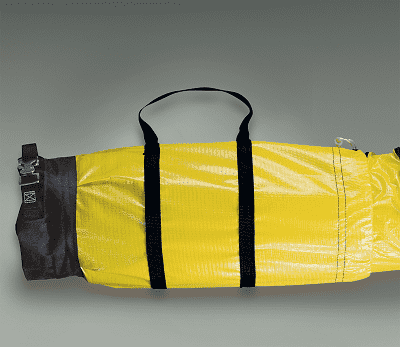

  • Easily compressible into self-storage bag for convenient handling and easy transportation.
  • Wearstrip offers external abrasion resistance.
  • Ideal for moving large volumes of air, smoke or fumes using portable and temporary ventilation blowers under positive pressure.
  • Manufactured with flame retardant materials.
  • Comes standard with an enclosed belted cuff on one end and an enclosed nylon ring on the other end.
Part Number 25 ft Reels Part Number 15 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft) Weight - 15ft (Lbs/Ft)
Sto-Sack 6in Sto-Sack 6in 6" N/A 3" 11:1 3.5 11 4.5 lbs 7.5 lbs
Sto-Sack 8in Sto-Sack 8in 8" N/A 4.5" 11:1 2.8 8 6.75 lbs 11.25 lbs
Sto-Sack 10in Sto-Sack 10in 10" N/A 5.5" 11:1 2 7 9 lbs 15 lbs
Sto-Sack 12in Sto-Sack 12in 12" N/A 6.75" 11:1 1 5 10.5 lbs 17.5 lbs
Sto-Sack 14in Sto-Sack 14in 14" N/A 8" 11:1 .75 5 12 lbs 20 lbs
Sto-Sack 16in Sto-Sack 16in 16" N/A 9" 11:1 .5 5 13.5 lbs 22.5 lbs
Sto-Sack 18in Sto-Sack 18in 18" N/A 10" 11:1 .4 4 15 lbs 25 lbs
Sto-Sack 20in Sto-Sack 20in 20" N/A 11" 11:1 .3 3 16.5 lbs 27.5 lbs
Sto-Sack 22in Sto-Sack 22in 22" N/A 12.5" 11:1 .2 3 19.5 lbs 32.5 lbs
Sto-Sack 24in Sto-Sack 24in 24" N/A 13.5" 11:1 .1 2 21 lbs 35 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
