14-T-7-25 Flexaust T-7 (T7) 14 inch Dust and Material Handling Duct Hose - 25ft

14-T-7-25 by Flexaust | #8731140025 | T-7 Series | Dust and Material Handling Duct Hose | 14 inch | 25ft

Save $49.22

$492.22

$492.22 - $492.22

$492.22

$443.00

$443.00 - $443.00

$443.00

Flexaust

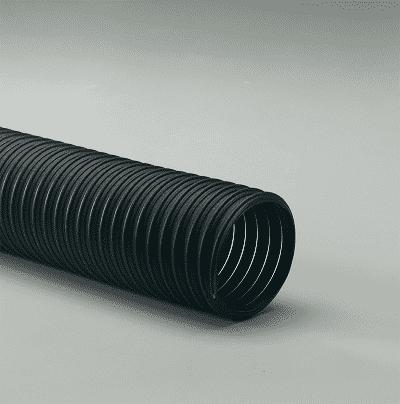

Flexadux T-7 (T7) Dust and Material Handling Duct Hose

Medium weight black thermoplastic rubber hose reinforced with a spring steel wire helix.

Package Quantity: 25 FT

Quantity

Specifications for Variant SKU: 14-T-7-25 Flexaust \| 25 \|
Brand:	Flexadux TR
Series:	T-7
Hose Color(s):	Black
Internal Diameter:	14in
Tubing Construction:	Thermoplastic Rubber

SPECIFICATIONS

Other Features:
Applications:	Chemical Plants, Dust Collection, Landfill Venting, Off-Road, Paint Spray Extraction, Pipe Organs, Plastic Bag Machines, Pollution Control, R.V. Manufacturing, Sheet Metal	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Medium weight black thermoplastic rubber
Reinforcement:	Spring steel wire helix	Cover:	N/A
Temperature Range:	-60 deg. F to 275 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A
Good abrasion resistance. Designed for applications with wide temperature ranges. Great moisture & UV resistance. Excellent chemical resistance. Smooth interior assures minimal friction loss & efficient air flow.

Part Number 25 ft Reels	Part Number 50 ft Reels	Inside Diameter	Wall Thickness (In)	Centerline Bend Radius (In)	Compression Ratio	Negative Pressure (In/Hg)	Working Pressure (PSI)	Weight - 25ft (Lbs/Ft)	Weight - 50ft (Lbs/Ft)
T-7 1.5in	T-7 1.5in	1.5"	.025"	1.7"	2:1	29	25	4 lbs	8 lbs
T-7 1.75in	T-7 1.75in	1.75"	.025"	1.8"	2:1	29	21	4.75 lbs	9.5 lbs
T-7 2in	T-7 2in	2"	.025"	2"	2:1	29	19	6.25 lbs	12.5 lbs
T-7 2.25in	T-7 2.25in	2.25"	.025"	2.2"	2:1	29	17	7 lbs	14 lbs
T-7 2.5in	T-7 2.5in	2.5"	.030"	2.5"	2:1	29	14	8 lbs	16 lbs
T-7 3in	T-7 3in	3"	.030"	3"	2:1	29	11	10 lbs	20 lbs
T-7 3.5in	T-7 3.5in	3.5"	.030"	4"	2:1	29	10	11.25 lbs	22.5 lbs
T-7 4in	T-7 4in	4"	.030"	5.5"	2:1	29	9	16.75 lbs	33.5 lbs
T-7 4.5in	T-7 4.5in	4.5"	.030"	6"	2:1	22	8	18.75 lbs	37.5 lbs
T-7 5in	T-7 5in	5"	.030"	6.5"	2:1	17	8	21.25 lbs	42.5 lbs
T-7 5.5in	T-7 5.5in	5.5"	.030"	6.8"	2:1	12.5	7	22.5 lbs	45 lbs
T-7 6in	T-7 6in	6"	.030"	6"	3:1	11	7	20.5 lbs	41 lbs
T-7 7in	T-7 7in	7"	.030"	7"	3:1	9	5	23.75 lbs	47.5 lbs
T-7 8in	T-7 8in	8"	.030"	8"	3:1	5.5	4.5	30 lbs	60 lbs
T-7 9in	T-7 9in	9"	.030"	9"	3:1	10	4	42.5 lbs	85 lbs
T-7 10in	T-7 10in	10"	.030"	10"	3:1	6.5	4	55 lbs	110 lbs
T-7 12in	T-7 12in	12"	.030"	12"	3:1	5	3.8	67.5 lbs	135 lbs
T-7 14in	T-7 14in	14"	.030"	14"	3:1	3	3.2	75 lbs	150 lbs
T-7 16in	T-7 16in	16"	.030"	16"	3:1	2.3	2.6	87.5 lbs	175 lbs
T-7 18in	T-7 18in	18"	.030"	18"	3:1	2	2.3	97.5 lbs	195 lbs
T-7 20in	T-7 20in	20"	.030"	21"	3:1	1.5	2	107.5 lbs	215 lbs
T-7 22in	T-7 22in	22"	.030"	23"	3:1	1	1.9	110 lbs	220 lbs
T-7 24in	T-7 24in	24"	.030"	25"	3:1	.8	1.75	120 lbs	240 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
