20-T-7-25 Flexaust T-7 (T7) 20 inch Dust and Material Handling Duct Hose - 25ft
20-T-7-25 Flexaust T-7 (T7) 20 inch Dust and Material Handling Duct Hose - 25ft
20-T-7-25 Flexaust T-7 (T7) 20 inch Dust and Material Handling Duct Hose - 25ft
20-T-7-25 Flexaust T-7 (T7) 20 inch Dust and Material Handling Duct Hose - 25ft

20-T-7-25 by Flexaust | #8731200025 | T-7 Series | Dust and Material Handling Duct Hose | 20 inch | 25ft

Save $428.49 Save $428.49
$1,246.82
$1,246.82 - $1,246.82
$1,246.82
$818.33
$818.33 - $818.33
$818.33

Flexaust
Flexadux T-7 (T7) Dust and Material Handling Duct Hose

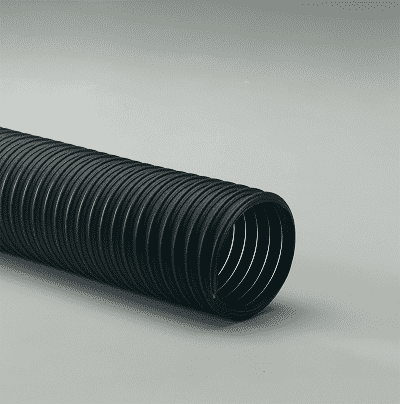

Medium weight black thermoplastic rubber hose reinforced with a spring steel wire helix.

Package Quantity: 25 FT

Specifications for Variant SKU: 20-T-7-25 Flexaust | 25 |
Brand: Flexadux TR
Series: T-7
Hose Color(s): Black
Internal Diameter: 20in
Tubing Construction: Thermoplastic Rubber

SPECIFICATIONS

Applications: Chemical Plants, Dust Collection, Landfill Venting, Off-Road, Paint Spray Extraction, Pipe Organs, Plastic Bag Machines, Pollution Control, R.V. Manufacturing, Sheet Metal SAE Rating: N/A
Other Ratings: N/A Tube: Medium weight black thermoplastic rubber
Reinforcement: Spring steel wire helix Cover: N/A
Temperature Range: -60 deg. F to 275 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Good abrasion resistance.
  • Designed for applications with wide temperature ranges.
  • Great moisture & UV resistance.
  • Excellent chemical resistance.
  • Smooth interior assures minimal friction loss & efficient air flow.
Part Number
25 ft Reels		 Part Number
50 ft Reels		 Inside
Diameter		 Wall Thickness
(In)		 Centerline
Bend Radius (In)		 Compression
Ratio		 Negative Pressure
(In/Hg)		 Working Pressure
(PSI)		 Weight - 25ft
(Lbs/Ft)		 Weight - 50ft
(Lbs/Ft)
T-7 1.5in T-7 1.5in 1.5" .025" 1.7" 2:1 29 25 4 lbs 8 lbs
T-7 1.75in T-7 1.75in 1.75" .025" 1.8" 2:1 29 21 4.75 lbs 9.5 lbs
T-7 2in T-7 2in 2" .025" 2" 2:1 29 19 6.25 lbs 12.5 lbs
T-7 2.25in T-7 2.25in 2.25" .025" 2.2" 2:1 29 17 7 lbs 14 lbs
T-7 2.5in T-7 2.5in 2.5" .030" 2.5" 2:1 29 14 8 lbs 16 lbs
T-7 3in T-7 3in 3" .030" 3" 2:1 29 11 10 lbs 20 lbs
T-7 3.5in T-7 3.5in 3.5" .030" 4" 2:1 29 10 11.25 lbs 22.5 lbs
T-7 4in T-7 4in 4" .030" 5.5" 2:1 29 9 16.75 lbs 33.5 lbs
T-7 4.5in T-7 4.5in 4.5" .030" 6" 2:1 22 8 18.75 lbs 37.5 lbs
T-7 5in T-7 5in 5" .030" 6.5" 2:1 17 8 21.25 lbs 42.5 lbs
T-7 5.5in T-7 5.5in 5.5" .030" 6.8" 2:1 12.5 7 22.5 lbs 45 lbs
T-7 6in T-7 6in 6" .030" 6" 3:1 11 7 20.5 lbs 41 lbs
T-7 7in T-7 7in 7" .030" 7" 3:1 9 5 23.75 lbs 47.5 lbs
T-7 8in T-7 8in 8" .030" 8" 3:1 5.5 4.5 30 lbs 60 lbs
T-7 9in T-7 9in 9" .030" 9" 3:1 10 4 42.5 lbs 85 lbs
T-7 10in T-7 10in 10" .030" 10" 3:1 6.5 4 55 lbs 110 lbs
T-7 12in T-7 12in 12" .030" 12" 3:1 5 3.8 67.5 lbs 135 lbs
T-7 14in T-7 14in 14" .030" 14" 3:1 3 3.2 75 lbs 150 lbs
T-7 16in T-7 16in 16" .030" 16" 3:1 2.3 2.6 87.5 lbs 175 lbs
T-7 18in T-7 18in 18" .030" 18" 3:1 2 2.3 97.5 lbs 195 lbs
T-7 20in T-7 20in 20" .030" 21" 3:1 1.5 2 107.5 lbs 215 lbs
T-7 22in T-7 22in 22" .030" 23" 3:1 1 1.9 110 lbs 220 lbs
T-7 24in T-7 24in 24" .030" 25" 3:1 .8 1.75 120 lbs 240 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
