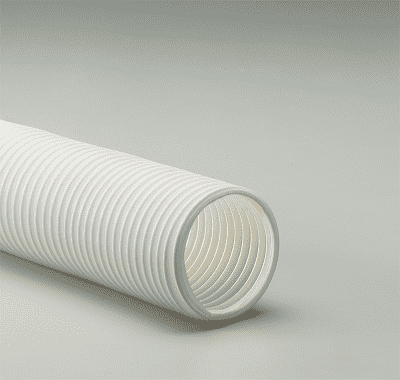

4-T-7-White-25 Flexaust #8881040025 T-7 White (T7 White) 4 inch Dust, and Material Handling Duct Hose - 25ft

  • $159.33

SPECIFICATIONS

Applications: Clean Rooms, Foundries, Pharmaceutical SAE Rating: N/A
Other Ratings: N/A Tube: Medium weight white thermoplastic rubber
Reinforcement: Spring steel wire helix Cover: N/A
Temperature Range: -40 deg. F to 250 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Good abrasion resistance.
  • Designed for applications with wide temperature ranges.
  • Great moisture & UV resistance.
  • Excellent chemical resistance.
  • Smooth interior assures minimal friction loss & efficient air flow.
  • Manufactured with FDA acceptable materials.
Part Number 25 ft Reels Part Number 50 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft) Weight - 50ft (Lbs/Ft)
T-7 White 2in T-7 White 2in 2" .025" 1.75" 2:1 29 14 6.25 lbs 12.5 lbs
T-7 White 2.25in T-7 White 2.25in 2.5" N/A N/A N/A N/A N/A N/A N/A
T-7 White 3in T-7 White 3in 3" .030" 2.5" 2:1 29 10 10 lbs 20 lbs
T-7 White 3.5in T-7 White 3.5in 3.5" N/A N/A N/A N/A N/A N/A N/A
T-7 White 4in T-7 White 4in 4" .030" 3.5" 2:1 15 7 15 lbs 30 lbs
T-7 White 5in T-7 White 5in 5" .030" 4.5" 2:1 13 6 20 lbs 40 lbs
T-7 White 6in T-7 White 6in 6" .030" 5.5" 2:1 8 5 21.25 lbs 42.5 lbs
T-7 White 7in T-7 White 7in 7" N/A N/A N/A N/A N/A N/A N/A
T-7 White 8in T-7 White 8in 8" .030" 7" 2:1 6 4 25 lbs 50 lbs
T-7 White 10in T-7 White 10in 10" .030" 8" 2:1 8 3.5 50 lbs 100 lbs
T-7 White 12in T-7 White 12in 12" .030" 10" 2:1 5 3 67.5 lbs 135 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
