4.5-T-7SR-25 Flexaust T-7SR (T7SR) 4.5 inch Air, Fume, Dust, and Material Handling Duct Hose - 25ft

4.5-T-7SR-25 by Flexaust | #8351045025 | T-7SR Series | Air, Fume, Dust, and Material Handling Duct Hose | 4.5 inch | 25ft

Save $139.50

$348.75

$348.75 - $348.75

$348.75

$209.25

$209.25 - $209.25

$209.25

Flexaust
Flexadux T-7SR (T7SR) Air, Fume, Dust, and Material Handling Duct Hose

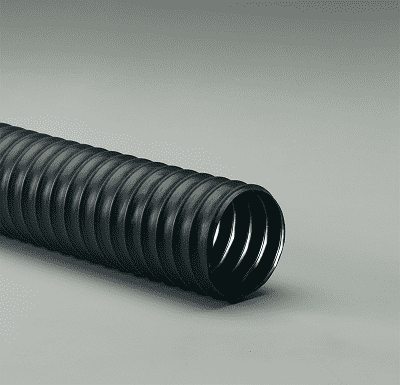

Black thermoplastic rubber coated super reinforced non-woven polyester fabric hose with a spring steel wire helix.

Package Quantity: 25 FT

Specifications for Variant SKU: 4.5-T-7SR-25 Flexaust \| 25 \|
Brand:	Flexadux TR
Series:	T-7SR
Hose Color(s):	Black
Internal Diameter:	4.50in
Tubing Construction:	Thermoplastic Rubber

SPECIFICATIONS

Other Features:
Applications:	Aluminum Refractory, Cotton Picking	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Black thermoplastic rubber
Reinforcement:	coated super reinforced non-woven polyester fabric hose with a spring steel wire helix	Cover:	N/A
Temperature Range:	-50 deg. F to 285 deg. F Intermittent to 325 deg.	Crimp Fittings:	N/A
Reusable Fittings:	N/A
Combines the ozone, UV, weathering, & chemical resistance of thermoplastic rubber with the tensile strength & fatigue resistance of fabric hoses. Offers better tear strength, puncture, & abrasion resistance than traditional reinforced woven neoprene & thermoplastic hoses. Handles higher positive pressures than non-reinforced thermoplastic rubber hoses.

Part Number 25 ft Reels	Part Number 50 ft Reels	Inside Diameter	Wall Thickness (In)	Centerline Bend Radius (In)	Compression Ratio	Negative Pressure (In/Hg)	Working Pressure (PSI)	Weight - 25ft (Lbs/Ft)	Weight - 50ft (Lbs/Ft)
T-7SR 2in	T-7SR 2in	2"	.020"	2.75"	3:1	29	50	5.5 lbs	11 lbs
T-7SR 2.25in	T-7SR 2.25in	2.25"	N/A	N/A	N/A	N/A	N/A	N/A	N/A
T-7SR 2.5in	T-7SR 2.5in	2.5"	.020"	2.8"	3:1	29	30	6.5 lbs	13 lbs
T-7SR 3in	T-7SR 3in	3"	.020"	3"	3:1	29	29	8.25 lbs	16.5 lbs
T-7SR 3.5in	T-7SR 3.5in	3.5"	.020"	3.2"	4:1	29	27	10 lbs	20 lbs
T-7SR 4in	T-7SR 4in	4"	.020"	3.5"	4:1	29	25	12.5 lbs	25 lbs
T-7SR 4.5in	T-7SR 4.5in	4.5"	.020"	4"	4:1	29	23	13.75 lbs	27.5 lbs
T-7SR 5in	T-7SR 5in	5"	.020"	5"	4:1	29	22	15.75 lbs	31.5 lbs
T-7SR 5.5in	T-7SR 5.5in	5.5"	N/A	N/A	N/A	N/A	N/A	N/A	N/A
T-7SR 6in	T-7SR 6in	6"	.020"	6"	4:1	14	16	17.5 lbs	35 lbs
T-7SR 7in	T-7SR 7in	7"	.020"	7"	4:1	10	14	21.25	42.5
T-7SR 8in	T-7SR 8in	8"	.020"	7.5"	4:1	8	12	25 lbs	50 lbs
T-7SR 9in	T-7SR 9in	9"	N/A	N/A	N/A	N/A	N/A	N/A	N/A
T-7SR 10in	T-7SR 10in	10"	.020"	9"	4:1	7	9	31.25 lbs	62.5 lbs
T-7SR 12in	T-7SR 12in	12"	.020"	10"	4:1	4	8	43.75 lbs	87.5 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
