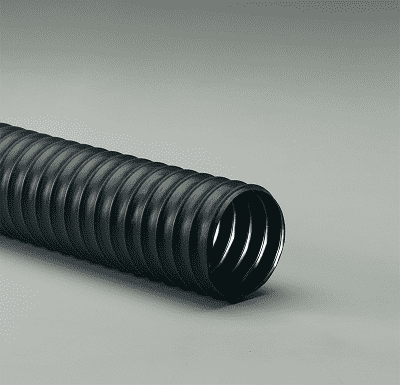

7-T-7SR-50 Flexaust #8351070050 T-7SR (T7SR) 7 inch Air, Fume, Dust, and Material Handling Duct Hose - 50ft

  • $438.00

SPECIFICATIONS

Applications: Aluminum Refractory, Cotton Picking SAE Rating: N/A
Other Ratings: N/A Tube: Black thermoplastic rubber
Reinforcement: coated super reinforced non-woven polyester fabric hose with a spring steel wire helix Cover: N/A
Temperature Range: -50 deg. F to 285 deg. F Intermittent to 325 deg. Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Combines the ozone, UV, weathering, & chemical resistance of thermoplastic rubber with the tensile strength & fatigue resistance of fabric hoses.
  • Offers better tear strength, puncture, & abrasion resistance than traditional reinforced woven neoprene & thermoplastic hoses.
  • Handles higher positive pressures than non-reinforced thermoplastic rubber hoses.
Part Number 25 ft Reels Part Number 50 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft) Weight - 50ft (Lbs/Ft)
T-7SR 2in T-7SR 2in 2" .024" 2.75" 3:1 29 50 5.5 lbs 11 lbs
T-7SR 2.25in T-7SR 2.25in 2.25" N/A N/A N/A N/A N/A N/A N/A
T-7SR 2.5in T-7SR 2.5in 2.5" N/A N/A N/A N/A N/A N/A N/A
T-7SR 3in T-7SR 3in 3" .024" 3" 3:1 29 29 8.25 lbs 16.5 lbs
T-7SR 3.5in T-7SR 3.5in 3.5 N/A N/A N/A N/A N/A N/A N/A
T-7SR 4in T-7SR 4in 4" .024" 3.5" 4:1 29 25 12.5 lbs 25 lbs
T-7SR 4.5in T-7SR 4.5in 4.5 N/A N/A N/A N/A N/A N/A N/A
T-7SR 5in T-7SR 5in 5" .024" 5" 4:1 29 22 15.75 lbs 31.5 lbs
T-7SR 5.5in T-7SR 5.5in 5.5" N/A N/A N/A N/A N/A N/A N/A
T-7SR 6in T-7SR 6in 6" .024" 6" 4:1 14 16 17.5 lbs 35 lbs
T-7SR 7in T-7SR 7in 7" N/A N/A N/A N/A N/A N/A N/A
T-7SR 8in T-7SR 8in 8" .024" 7.5" 4:1 8 12 25 lbs 50 lbs
T-7SR 9in T-7SR 9in 9" N/A N/A N/A N/A N/A N/A N/A
T-7SR 10in T-7SR 10in 10" .024" 9" 4:1 7 9 31.25 lbs 62.5 lbs
T-7SR 12in T-7SR 12in 12" .024" 10" 4:1 4 8 43.75 lbs 87.5 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
