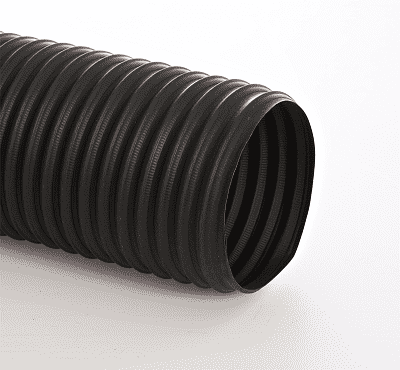

6-XLT-25 Flexaust XLT 6 inch Air and Fume Duct Hose - 25ft
6-XLT-25 Flexaust XLT 6 inch Air and Fume Duct Hose - 25ft
6-XLT-25 Flexaust XLT 6 inch Air and Fume Duct Hose - 25ft
6-XLT-25 Flexaust XLT 6 inch Air and Fume Duct Hose - 25ft

6-XLT-25 by Flexaust | #8401060025 | XLT | Air and Fume Duct Hose | 6 inch | 25ft

Save $103.17 Save $103.17
$257.92
$257.92 - $257.92
$257.92
$154.75
$154.75 - $154.75
$154.75

Flexaust Flexadux XLT Air and Fume Duct Hose Very light weight black thermoplastic rubber hose reinforced with a spring steel wire helix.

Package Quantity: 25 FT

Specifications for Variant SKU: 6-XLT-25 Flexaust | 25 |
Brand: Flexadux TR
Series: XLT
Hose Color(s): Black
Internal Diameter: 6in
Tubing Construction: Thermoplastic Rubber

SPECIFICATIONS

Applications: A/C Ventilation, Defroster/Heater, Electronic Panel Cooling, Pet Grooming Equipment, Stereo Speakers, Textile Fiber Collection SAE Rating: N/A
Other Ratings: N/A Tube: Very light weight black thermoplastic rubber
Reinforcement: Spring steel wire helix Cover: N/A
Temperature Range: 60 deg. F to 275 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Excellent compressibility & flexibility.
  • Most compressible thermoplastic rubber hose in product line.
  • Recommended for light duty, low pressure applications.
  • Designed for applications with wide temperature ranges.
  • Easy to install in tight spaces.
  • Great moisture & UV resistance.
  • Excellent chemical resistance.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
XLT 2in 2" .012" 2" 6:1 29 7 3.5 lbs
XLT 3in 3" .012" 2.96" 6:1 14 4.93 5.25 lbs
XLT 4in 4" .012" 3.5" 6:1 6 3.7 7 lbs
XLT 5in 5" .012" 3.96" 6:1 3 3 8.75 lbs
XLT 6in 6" .012" 4.42" 6:1 1.8 2.5 10.5 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
