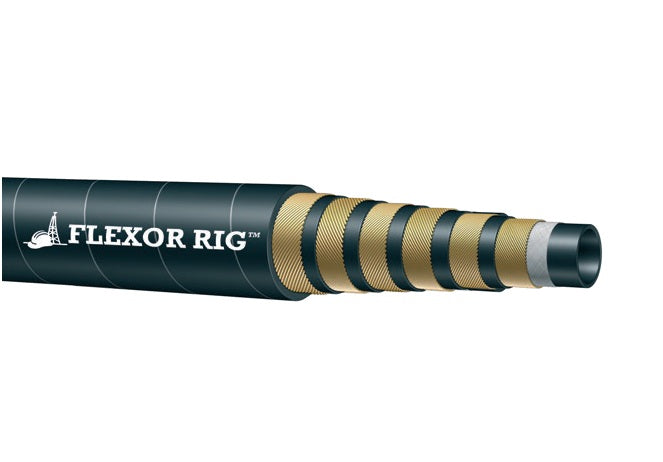

FLEXOR RIG-32 Alfagomma by Kuriyama | Flexor Rig™ Slim Hole Rotary Drilling Hose | 6-Spiral Wire | 2" ID | 2.76" OD | 5000 PSI

FLEXOR RIG-32 Alfagomma by Kuriyama | Flexor Rig™ Slim Hole Rotary Drilling Hose | 6-Spiral Wire | 2" ID | 2.76" OD | 5000 PSI

Save $15.04 Save $15.04
$52.63
$52.63 - $52.63
$52.63
$37.59
$37.59 - $37.59
$37.59

Kuriyama of America Inc.
Alfagomma | Flexor Rig™ Slim Hole Rotary Drilling Hose

Rotary hose, specially designed for use in portable, work-over and seismograph drilling rigs.

MSHA IC-152/16 approved flame resistance

This item is sold as Bulk Length and thus may come in multiple sections.
Specifications for Variant SKU: FLEXOR RIG-32 Kuriyama
Brand: Alfagomma
Series: Flexor Rig Series
Hose Color(s): Black
Dash Size: -32
Internal Diameter: 2in
Outer Diameter: 2.76in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: MSHA IC-152/16
Special Properties: Pin Pricked Hose Cover
Compatible with the following Series: M Series  |   F Series
Application: Rotary hose, specially designed for use in portable, work-over and seismograph drilling rigs. SAE Rating: -
Other Ratings: MSHA IC-152/16 approved flame resistance Tube: Oil resistant synthetic rubber.
Reinforcement: Six spiral wires Cover: Minetuff abrasion, ozone, hydrocarbon and flame resistant synthetic pin pricked rubber.
Service Temperature Range: -40°F (-40°C) to +250°F (+121°C) constant operation. Ambient Temperature: -40°F (-40°C) to +200°F (+100°C). Note: Operating temperatures in excess of +250°F (+121°C) may materially reduce the life of the hose.
Branding: ALFAGOMMA FLEXOR RIG ID - SLIM HOLE ROTARY - ...WP ...MPa (...PSI) - DN - IN...MSHA IC-152/16 - Q/YR
Part Number ID OD Max. Working
Pressure*		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
FLEXOR RIG-32 2" 50.8mm 2.76" 70.2mm 5000 PSI 21.6" 550mm 4.14ft

* FLEXOR RIG Minimum burst pressure 4-to-1 safety factor for ID size 2".
