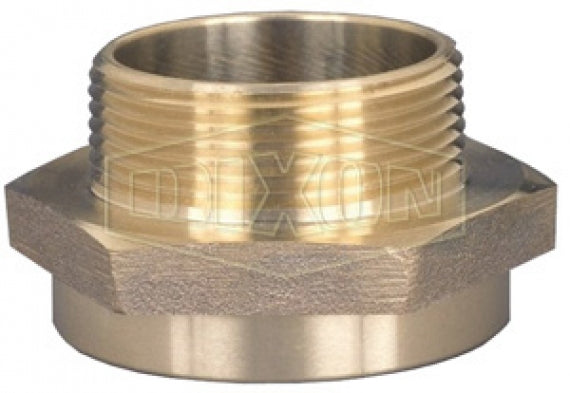

FM2525NYFD Dixon Cast Brass Female to Male Hex Nipple - 2-1/2" Female NPT x 2-1/2" Male NYFD

FM2525NYFD Dixon Cast Brass Female to Male Hex Nipple - 2-1/2" Female NPT x 2-1/2" Male NYFD

Save $39.41 Save $39.41
$98.52
$98.52 - $98.52
$98.52
$59.11
$59.11 - $59.11
$59.11

Dixon Fire Fittings
Female to Male Hex Nipple - New York Threads
Specifications for Variant SKU: FM2525NYFD Dixon
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Female NPT, 2-1/2in Male NYFD
Material(s): Brass
Features:
  • Material: Cast Brass
  • NYFD thread = 3.031 x 8 TPI
  • NYC thread = 3.00 x 8 TPI
Part Number Female Thread Male Thread Weight
(Lbs.)
FM1515NYFD 1-1/2" Female NPT 1-1/2" Male NYFD 0.5400
FM15F15NYFD 1-1/2" Female NST(NH) 1-1/2" Male NYFD 0.5470
FM15NYFD15F 1-1/2" Female NYFD 1-1/2" Male NST(NH) 0.6400
FM15NYFD15T 1-1/2" Female NYFD 1-1/2" Male NPT 0.5500
FM2525NYC 2-1/2" Female NPT 2-1/2" Male NYC 1.4400
FM2525NYFD 2-1/2" Female NPT 2-1/2" Male NYFD 1.5000
FM25F25NYC 2-1/2" Female NST(NH) 2-1/2" Male NYC 1.1900
FM25F25NYFD 2-1/2" Female NST(NH) 2-1/2" Male NYFD 1.3000
FM25NYC25F 2-1/2" Female NYC 2-1/2" Male NST(NH) 1.9600
FM25NYC25T 2-1/2" Female NYC 2-1/2" Male NPT 1.2100
FM25NYFD25F 2-1/2" Female NYFD 2-1/2" Male NST(NH) 1.9800
FM25NYFD25T 2-1/2" Female NYFD 2-1/2" Male NPT 1.5000
FM25NYFD15T 2-1/2" Female NYFD 1-1/2" Male NPT 1.6000
FM25NYFD30T 2-1/2" Female NYFD 3" Male NPT 1.5600
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
