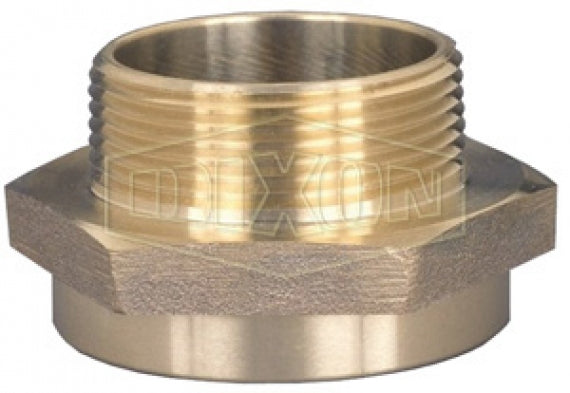

FM25NYFD25T Dixon Cast Brass Female to Male Hex Nipple - 2-1/2" Female NYFD x 2-1/2" Male NPT

FM25NYFD25T Dixon Cast Brass Female to Male Hex Nipple - 2-1/2" Female NYFD x 2-1/2" Male NPT

Save $3.92 Save $3.92
$47.76
$47.76 - $47.76
$47.76
$43.84
$43.84 - $43.84
$43.84

Dixon Fire Fittings
Female to Male Hex Nipple - New York Threads
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FM25NYFD25T Dixon
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Female NYFD, 2-1/2in Male NPT
Material(s): Brass
Features:
  • Material: Cast Brass
  • NYFD thread = 3.031 x 8 TPI
  • NYC thread = 3.00 x 8 TPI
Part Number Female Thread Male Thread Weight
(Lbs.)
FM1515NYFD 1-1/2" Female NPT 1-1/2" Male NYFD 0.5400
FM15F15NYFD 1-1/2" Female NST(NH) 1-1/2" Male NYFD 0.5470
FM15NYFD15F 1-1/2" Female NYFD 1-1/2" Male NST(NH) 0.6400
FM15NYFD15T 1-1/2" Female NYFD 1-1/2" Male NPT 0.5500
FM2525NYC 2-1/2" Female NPT 2-1/2" Male NYC 1.4400
FM2525NYFD 2-1/2" Female NPT 2-1/2" Male NYFD 1.5000
FM25F25NYC 2-1/2" Female NST(NH) 2-1/2" Male NYC 1.1900
FM25F25NYFD 2-1/2" Female NST(NH) 2-1/2" Male NYFD 1.3000
FM25NYC25F 2-1/2" Female NYC 2-1/2" Male NST(NH) 1.9600
FM25NYC25T 2-1/2" Female NYC 2-1/2" Male NPT 1.2100
FM25NYFD25F 2-1/2" Female NYFD 2-1/2" Male NST(NH) 1.9800
FM25NYFD25T 2-1/2" Female NYFD 2-1/2" Male NPT 1.5000
FM25NYFD15T 2-1/2" Female NYFD 1-1/2" Male NPT 1.6000
FM25NYFD30T 2-1/2" Female NYFD 3" Male NPT 1.5600
