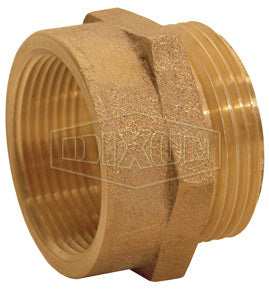

FM4040F Dixon Cast Brass Female to Male Hex Nipple - 4" Female NPT x 4" Male NST(NH)

FM4040F Dixon Cast Brass Female to Male Hex Nipple - 4" Female NPT x 4" Male NST(NH)

Save $11.74 Save $11.74
$177.78
$177.78 - $177.78
$177.78
$166.04
$166.04 - $166.04
$166.04

Dixon Fire Fittings
Female to Male Hex Nipple - Cast Brass
Specifications for Variant SKU: FM4040F Dixon
Shape (Orientation): Straight
Ends Configuration: 4in Female NPT, 4in Male NST
Material(s): Brass
Part Number Female Thread Male Thread Weight
(Lbs.)
FM7610T 3/4" Female GHT 1" Male NPT 0.2500
FM10S76 1" Female NPSH 3/4" Male GHT 0.1900
FM1076 1" Female NPT 3/4" Male GHT 0.2800
FM1010 1" Female NPT 1" Male NPSH 0.2500
FM1010F 1" Female NPT 1" Male NST(NH) 0.2500
FM1015 1" Female NPT 1-1/2" Male NPSH 0.5200
FM1015F 1" Female NPT 1-1/2" Male NST(NH) 0.5200
FM10F10T 1" Female NST(NH) 1" Male NPT 0.2200
FM1515 1-1/2" Female NPT 1-1/2" Male NPSH 0.4900
FM1515F 1-1/2" Female NPT 1-1/2" Male NST(NH) 0.5000
FM1525F 1-1/2" Female NPT 2-1/2" Male NST(NH) 1.6500
FM15F15S 1-1/2" Female NST 1-1/2" Male NPSH 0.3800
FM15F15T 1-1/2" Female NST(NH) 1-1/2" Male NPT 0.4000
FM15F20T 1-1/2" Female NST(NH) 2" Male NPT 0.6600
FM15F25T 1-1/2" Female NST(NH) 2-1/2" Male NPT 1.9100
FM15F25F 1-1/2" Female NST(NH) 2-1/2" Male NST(NH) 1.8900
FM15F15F 1-1/2" Female NST(NH) 1-1/2" Male NST(NH) 0.3500
FM15S15F 1-1/2" Female NPSH 1-1/2" Male NST(NH) 0.4400
FM15S15T 1-1/2" Female NPSH 1-1/2" Male NPT 0.4200
FM15S20T 1-1/2" Female NPSH 2" Male NPT 0.7435
FM20S15 2" Female NPSH 1-1/2" Male NPSH 0.6600
FM20S15F 2" Female NPSH 1-1/2" Male NST(NH) 0.7000
FM20S15T 2" Female NPSH 1-1/2" Male NPT 0.7000
FM20S20T 2" Female NPSH 2" Male NPT 0.8870
FM20S25F 2" Female NPSH 2-1/2" Male NST(NH) 1.7800
FM2015 2" Female NPT 1-1/2" Male NPSH 1.6900
FM2015F 2" Female NPT 1-1/2" Male NST(NH) 0.7030
FM2020 2" Female NPT 2" Male NPSH 0.6500
FM2025F 2" Female NPT 2-1/2" Male NST(NH) 1.3000
FM25F75T 2-1/2" Female NST(NH) 3/4" Male NPT 1.8000
FM25F10T 2-1/2" Female NST(NH) 1" Male NPT 1.6200
FM25F15F 2-1/2" Female NST(NH) 1-1/2" Male NST(NH) 1.1000
FM25F15T 2-1/2" Female NST(NH) 1-1/2" Male NPT 1.6200
FM25F20T 2-1/2" Female NST(NH) 2" Male NPT 1.1000
FM2515F 2-1/2" Female NPT 1-1/2" Male NST(NH) 1.7150
FM2525 2-1/2" Female NPT 2-1/2" Male NPSH 1.3695
FM2525F 2-1/2" Female NPT 2-1/2" Male NST(NH) 1.4600
FM25F25F 2-1/2" Female NST(NH) 2-1/2" Male NST(NH) 1.7500
FM25F25T 2-1/2" Female NST(NH) 2-1/2" Male NPT 1.1400
FM25F30F 2-1/2" Female NST(NH) 3" Male NST(NH) 1.6400
FM25F30T 2-1/2" Female NST(NH) 3" Male NPT 1.4000
FM25F25S 2-1/2" Female NST 2-1/2" Male NPSH 1.1900
FM2525T 2-1/2" Female NPT 2-1/2" Male NPT 1.4800
FM25S25F 2-1/2" Female NPSH 2-1/2" Male NST(NH) 1.3200
FM25S25T 2-1/2" Female NPSH 2-1/2" Male NPT 1.2000
FM3025F 3" Female NPT 2-1/2" Male NST(NH) 2.2400
FM3025T 3" Female NPT 2-1/2" Male NPT 2.0600
FM3030F 3" Female NPT 3" Male NST(NH) 1.9200
FM30F25F 3" Female NST(NH) 2-1/2" Male NST(NH) 1.7800
FM30F25T 3" Female NST(NH) 2-1/2" Male NPT 2.2300
FM30F30T 3" Female NST(NH) 3" Male NPT 2.1700
FM30S25F 3" Female NPSH 2-1/2" Male NST(NH) 1.8840
FM4025F 4" Female NPT 2-1/2" Male NST(NH) 4.9400
FM4040F 4" Female NPT 4" Male NST(NH) 3.9700
FM4045F 4" Female NPT 4-1/2" Male NST(NH) 7.5500
FM40F40T 4" Female NST(NH) 4" Male NPT 4.7500
FM45F40T 4-1/2" Female NST(NH) 4" Male NPT 4.9500
FM6060F 6" Female NPT 6" Male NST(NH) 14.1000
FM60F60T 6" Female NST(NH) 6" Male NPT 10.8000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
