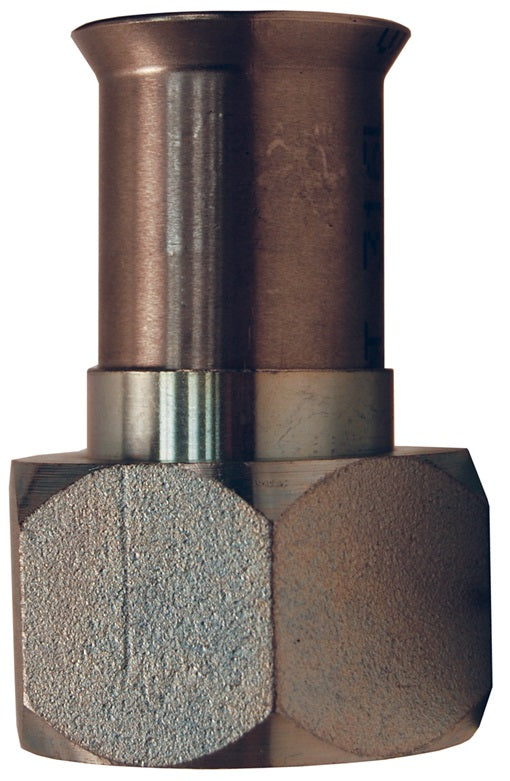

FMF1500 by Dixon Valve | Weld End Metal Hose Fitting | 1-7/8" Female SAE 37° JIC x 1-1/2" Tube OD | Carbon Steel Nut & Sleeve

FMF1500 by Dixon Valve | Weld End Metal Hose Fitting | 1-7/8" Female SAE 37° JIC x 1-1/2" Tube OD | Carbon Steel Nut & Sleeve

Save $84.83 Save $84.83
$212.08
$212.08 - $212.08
$212.08
$127.25
$127.25 - $127.25
$127.25

Dixon Valve
Weld End Metal Hose Fitting | Straight | Female SAE 37° JIC


Specifications for Variant SKU: FMF1500 Dixon
Shape (Orientation): Straight
Material(s): Carbon Steel, 316 Stainless Steel
Features:
  • 316 seamless stainless steel tubes
Safety Notes:
  • Pressure rating at 70°F (21°C)
304 Stainless Steel
Nut & Sleeve
Part Number		 Carbon Steel
Nut & Sleeve
Part		 Female
SAE 37° JIC		 Tube
O.D.		 Pressure
Rating PSI
at 70°F (21°)		 Dimension L Tube Wall
SFMF375 FMF375 9/16" - 18 3/8" 5550 1.500" .049"
SFMF500 FMF500 3/4" - 16 1/2" 4050 1.500" .049"
SFMF750 FMF750 1-1/16" - 12 3/4" 2600 1.500" .049"
SFMF1000 FMF1000 1-5/16" - 12 1" 1950 2.000" .049"
SFMF1250 FMF1250 1-5/8" - 12 1-1/4" 2050 2.375" .065"
SFMF1500  - 1-7/8" - 12 1-1/2" 1700 2.375" .065"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
