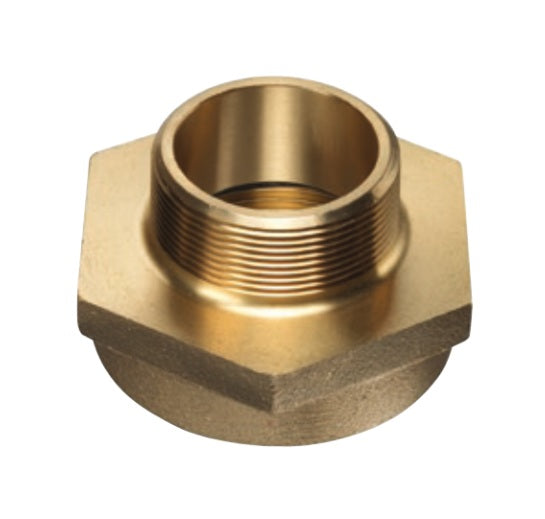

FMHN-24SH24ST by Kuriyama | FMHN Series | Hydrant & Garden Hose Adapter | Hex Nipple | 1-1/2" Female NPSH x 1-1/2" Male NST | Brass

FMHN-24SH24ST by Kuriyama | FMHN Series | Hydrant & Garden Hose Adapter | Hex Nipple | 1-1/2" Female NPSH x 1-1/2" Male NST | Brass

Save $8.78 Save $8.78
$27.53
$27.53 - $27.53
$27.53
$18.75
$18.75 - $18.75
$18.75

Kuriyama of America Inc.
FMHN Series | Hydrant & Garden Hose Hex Nipple | Brass

Designed for use in connection of hoses, nozzles, hydrants, pipes, or other fittings using NST, NPSH, or GHT threads.
Specifications for Variant SKU: FMHN-24SH24ST Kuriyama
Series: FMHN Series
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Female NPSH, 1-1/2in Male NST
Material(s): Brass
Applicable Specs & Approvals: ASTM B584

What are the Features?

  • Designed for use in connection of hoses, nozzles, hydrants, pipes, or other fittings using NST, NPSH, or GHT threads.
  • Brass adapters are more durable and heat resistant than aluminum adapters.

What are the Materials?

  • Made of heavy-duty brass material.
  • Brass ASTM B584, Grade C85700.
Part Number Female Thread
(in)		 Male Thread
(in)		 PSI Rating
at 70°F		 Weight
Each
(lbs)
FMHN-12GH16PT 3/4" Female GHT 1" Male NPT 300 PSI 0.25 lbs
FMHN-16PT12GH 1" Female NPT 3/4" Male GHT 300 PSI 0.26 lbs
FMHN-24PT24SH 1-1/2" Female NPT 1-1/2" Male NPSH 300 PSI 0.51 lbs
FMHN-40PT40SH 2-1/2" Female NPT 2-1/2" Male NPSH 300 PSI 1.33 lbs
FMHN-24PT24ST 1-1/2" Female NPT 1-1/2" Male NST 300 PSI 0.53 lbs
FMHN-40PT40ST 2-1/2" Female NPT 2-1/2" Male NST 300 PSI 1.20 lbs
FMHN-48PT40ST 3" Female NPT 2-1/2" Male NST 300 PSI 2.92 lbs
FMHN-16SH12GH 1" Female NPSH 3/4" Male GHT 300 PSI 0.25 lbs
FMHN-24SH24PT 1-1/2" Female NPSH 1-1/2" Male NPT 300 PSI 0.49 lbs
FMHN-24SH24ST 1-1/2" Female NPSH 1-1/2" Male NST 300 PSI 0.55 lbs
FMHN-40SH40ST 2-1/2" Female NPSH 2-1/2" Male NST 300 PSI 1.20 lbs
FMHN-24ST24PT 1-1/2" Female NST 1-1/2" Male NPT 300 PSI 0.44 lbs
FMHN-24ST24SH 1-1/2" Female NST 1-1/2" Male NPSH 300 PSI 0.49 lbs
FMHN-40ST32PT 2-1/2" Female NST 2" Male NPT 300 PSI 2.29 lbs
FMHN-40ST40PT 2-1/2" Female NST 2-1/2" Male NPT 300 PSI 1.76 lbs
FMHN-40ST48PT 2-1/2" Female NST 3" Male NPT 300 PSI 2.43 lbs
FMHN-40ST40SH 2-1/2" Female NST 2-1/2" Male NPSH 300 PSI 1.59 lbs
FMHN-40ST48ST 2-1/2" Female NST 3" Male NST 300 PSI 2.43 lbs
FMHN-48ST40ST 3" Female NST 2-1/2" Male NST 300 PSI 2.87 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
