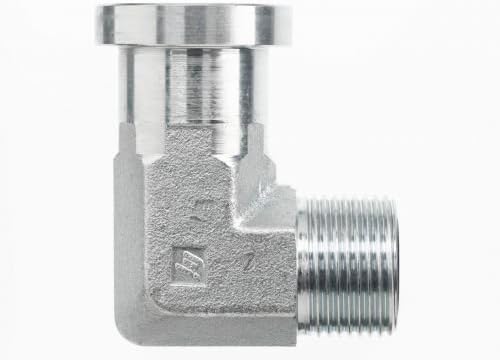

FS1804-20-16-FG by Brennan Inc. | -20 Male Face Seal x -16 Flange Code 62 | 90° Elbow | Forged Steel

FS1804-20-16-FG by Brennan Inc. | -20 Male Face Seal x -16 Flange Code 62 | 90° Elbow | Forged Steel

$73.49 - $73.49
$73.49
$93.24
$93.24 - $93.24
$93.24

Brennan Inc.
Flange Fittings: FS1803 - Male Face Seal x Flange 90° Elbow (Code 62)
Specifications for Variant SKU: FS1804-20-16-FG Brennan
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/4in Male O-Ring Face Seal, 1in Flange Code 62
Material(s): Steel
Part Number Material TubeO.D. 1Thread 2Flange L1(in.) L2(in.) A/F(in.)
FS1804-12-12-FG Forged Steel 3/4" 1-3/16-12" 3/4" 1.660" 2.130" 1.062"
FS1804-12-16-FG Forged Steel 3/4" 1-3/16-12" 1" 1.810" 2.370" 1.312"
FS1804-16-12-FG Forged Steel 1" 1-7/16-12" 3/4" 1.660" 2.130" 1.062"
FS1804-16-16-FG Forged Steel 1" 1-7/16-12" 1" 1.810" 2.370" 1.312"
FS1804-16-20-FG Forged Steel 1" 1-7/16-12" 1-1/4" 2.100" 2.760" 1.625"
FS1804-20-16-FG Forged Steel 1-1/4" 1-11/16-12" 1" 1.810" 2.370" 1.312"
FS1804-20-20-FG Forged Steel 1-1/4" 1-11/16-12" 1-1/4" 2.060" 2.750" 1.625"
FS1804-20-24-FG Forged Steel 1-1/4" 1-11/16-12" 1-1/2" 2.330" 3.150" 1.875"
FS1804-24-20-FG Forged Steel 1-1/2" 2-12" 1-1/4" 2.060" 2.760" 1.875"
FS1804-24-24-FG Forged Steel 1-1/2" 2-12" 1-1/2" 2.330" 3.150" 1.875"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
