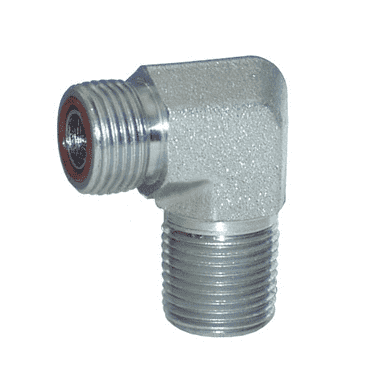

FS2501-6-6 Dixon Zinc Plated Steel 11/16"-16 Male Flat Face x 3/8"-18 Male NPTF 90 deg. Elbow

FS2501-6-6 Dixon Valve Zinc Plated Steel 11/16"-16 Male Flat Face x 3/8"-18 Male NPTF 90 deg. Elbow

Save $2.78 Save $2.78
$6.95
$6.95 - $6.95
$6.95
$4.17
$4.17 - $4.17
$4.17

Flat Face Fittings - Male Flat Face x Male NPTF 90 deg. Elbows - Zinc Plated Steel
Specifications for Variant SKU: FS2501-6-6 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Male O-Ring Face Seal, 3/8in Male NPTF
Material(s): Zink-Plated Steel
Features:
  • N/A
Part Number Male Flat Face Male NPTF Working Pressure Weight (Lbs.)
FS2501-4-4 9/16"-18 1/4"-18 5000 PSI 0.1100
FS2501-6-6 11/16"-16 3/8"-18 4000 PSI 0.1900
FS2501-8-8 13/16"-16 1/2"-14 3000 PSI 0.2800
FS2501-12-12 1-3/16"-12 3/4"-14 2500 PSI 0.2600
FS2501-16-16 1-7/16"-12 1"-11-1/2 2000 PSI 0.9200
