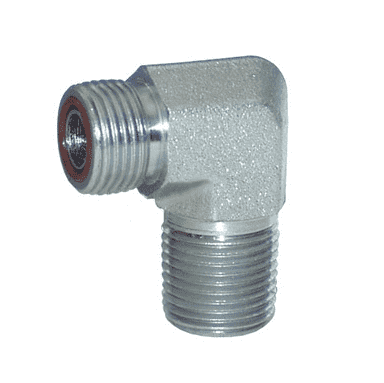

FS2501-8-8 Dixon Zinc Plated Steel 13/16"-16 Male Flat Face x 1/2"-14 Male NPTF 90 deg. Elbow

FS2501-8-8 Dixon Valve Zinc Plated Steel 13/16"-16 Male Flat Face x 1/2"-14 Male NPTF 90 deg. Elbow

Save $0.75 Save $0.75
$6.76
$6.76 - $6.76
$6.76
$6.01
$6.01 - $6.01
$6.01

Flat Face Fittings - Male Flat Face x Male NPTF 90 deg. Elbows - Zinc Plated Steel
Specifications for Variant SKU: FS2501-8-8 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Male O-Ring Face Seal, 1/2in Male NPTF
Material(s): Zink-Plated Steel
Features:
  • N/A
Part Number Male Flat Face Male NPTF Working Pressure Weight (Lbs.)
FS2501-4-4 9/16"-18 1/4"-18 5000 PSI 0.1100
FS2501-6-6 11/16"-16 3/8"-18 4000 PSI 0.1900
FS2501-8-8 13/16"-16 1/2"-14 3000 PSI 0.2800
FS2501-12-12 1-3/16"-12 3/4"-14 2500 PSI 0.2600
FS2501-16-16 1-7/16"-12 1"-11-1/2 2000 PSI 0.9200
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
