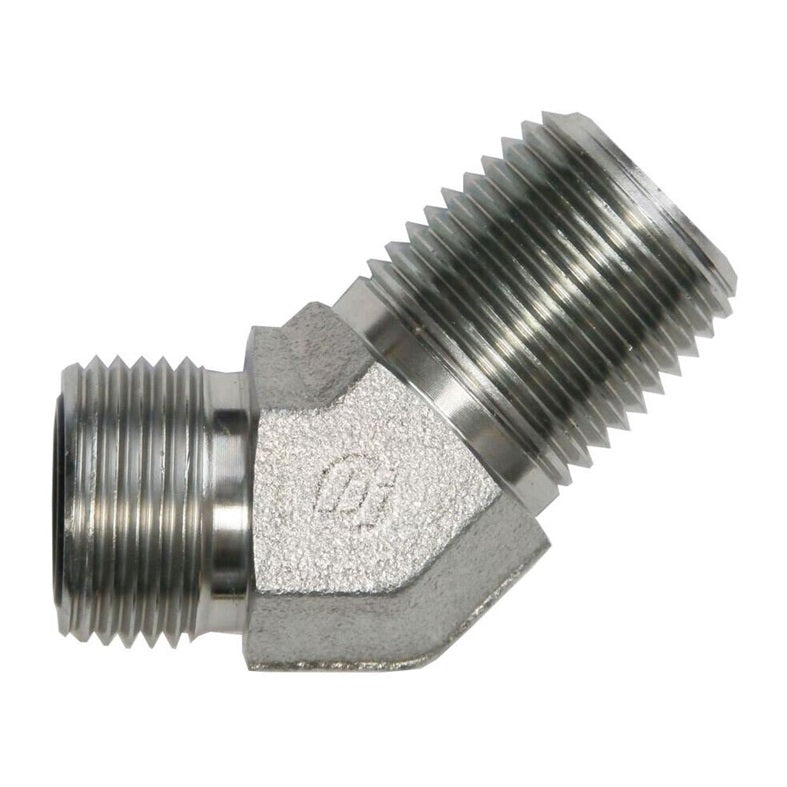

FS2503-06-04-FG by Brennan Inc. | -06 Male Face Seal x -04 Male Pipe | 45° Elbow | Forged Steel

FS2503-06-04-FG by Brennan Inc. | -06 Male Face Seal x -04 Male Pipe | 45° Elbow | Forged Steel

$2.87 - $2.87
$2.87
$3.64
$3.64 - $3.64
$3.64

Brennan Inc.
O-Ring Face Seal Fittings: FS2503 - Male Face Seal x Male Pipe 45° Elbow
Specifications for Variant SKU: FS2503-06-04-FG Brennan
Shape (Orientation): 45 Degree
Ends Configuration: 3/8in Male O-Ring Face Seal, 1/4in Male NPT
Material(s): Steel
Part Number Material Tube O.D. A Thread B Thread A Drill B Drill MLength NLength JJFlats
FS2503-04-02-FG Forged Steel 1/4" 9/16-18" 1/8-27" 0.172" 0.188" 0.630" 0.670" 0.562"
FS2503-04-04-FG Forged Steel 1/4" 9/16-18" 1/4-18" 0.172" 0.281" 0.630" 0.860" 0.562"
FS2503-06-04-FG Forged Steel 3/8" 11/16-16" 1/4-18" 0.264" 0.281" 0.740" 0.870" 0.750"
FS2503-06-06-FG Forged Steel 3/8" 11/16-16" 3/8-18" 0.264" 0.406" 0.740" 0.950" 0.750"
FS2503-06-08-FG Forged Steel 3/8" 11/16-16" 1/2-14" 0.264" 0.531" 0.790" 1.170" 0.875"
FS2503-08-06-FG Forged Steel 1/2" 13/16-16" 3/8-18" 0.378" 0.406" 0.800" 0.950" 0.750"
FS2503-08-08-FG Forged Steel 1/2" 13/16-16" 1/2-14" 0.378" 0.531" 0.800" 1.170" 0.875"
FS2503-08-12-FG Forged Steel 1/2" 13/16-16" 3/4-14" 0.378" 0.719" 0.820" 1.200" 1.062"
FS2503-10-08-FG Forged Steel 5/8" 1-14" 1/2-14" 0.484" 0.531" 0.920" 1.200" 1.062"
FS2503-12-08-FG Forged Steel 3/4" 1-3/16-12" 1/2-14" 0.609" 0.531" 1.020" 1.300" 1.188"
FS2503-12-12-FG Forged Steel 3/4" 1-3/16-12" 3/4-14" 0.609" 0.719" 1.020" 1.180" 1.188"
FS2503-16-16-FG Forged Steel 1" 1-7/16-12" 1-11-1/2" 0.811" 0.938" 1.180" 1.560" 1.438"
FS2503-20-20-FG Forged Steel 1-1/4" 1-11/16-12" 1-1/4-11-1/2" 1.024" 1.250" 1.260" 1.670" 1.625"

FS2503-04-04-SS Stainless Steel 1/4" 9/16-18" 1/4-18" 0.172" 0.281" 0.630" 0.860" 0.562"
FS2503-06-06-SS Stainless Steel 3/8" 11/16-16" 3/8-18" 0.264" 0.406" 0.740" 0.950" 0.750"
FS2503-20-20-SS Stainless Steel 1-1/4" 1-11/16-12" 1-1/4-11-1/2" 1.024" 1.250" 1.260" 1.670" 1.625"
