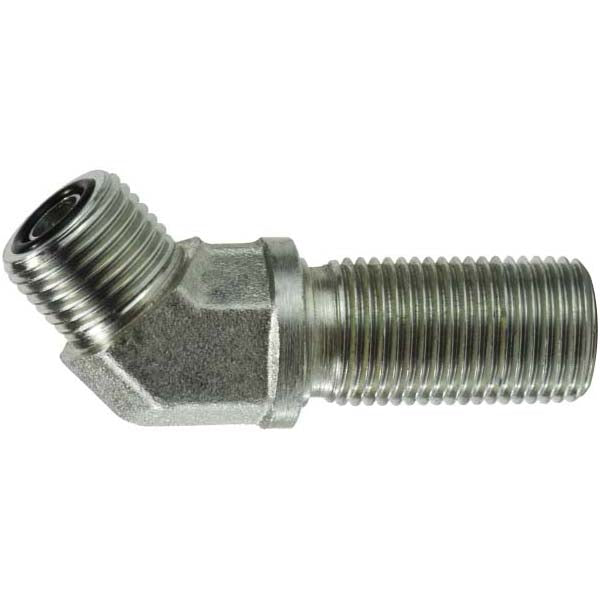

FS27022020 by Midland | Hydraulic Adapter | Bulkhead Union | 45° Elbow | 1-1/4" Male O-Ring Face Seal x 1-1/4" Male O-Ring Face Seal | Steel

Save $9.05

$22.62

$22.62 - $22.62

$22.62

$13.57

$13.57 - $13.57

$13.57

Midland Industries
Hydraulic Adapters: ORFS Bulkhead Union - 45° Elbow - Steel

Locknut NOT Included on Bulkhead Fittings

Specifications for Variant SKU: FS27022020 Midland
Shape (Orientation):	45 Degree
Ends Configuration:	1-1/4in Male O-Ring Face Seal, 1-1/4in Male O-Ring Face Seal, Some Ends Match
Material(s):	Steel

Technical Info:
Midland Industries Hydraulics Technical Info.PDF

Crossover Series:
FF2702	4375	WNLO


Part Number	Male O-Ring Face Seal	Male O-Ring Face Seal Thread
FS270244	1/4" x 1/4"	9/16-18
FS270266	3/8" x 3/8"	11/16-16
FS27021010	5/8" x 5/8"	1-14
FS27021616	1" x 1"	1-7/16-12
FS27022020	1-1/4" x 1-1/4"	1-11/16-12

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
