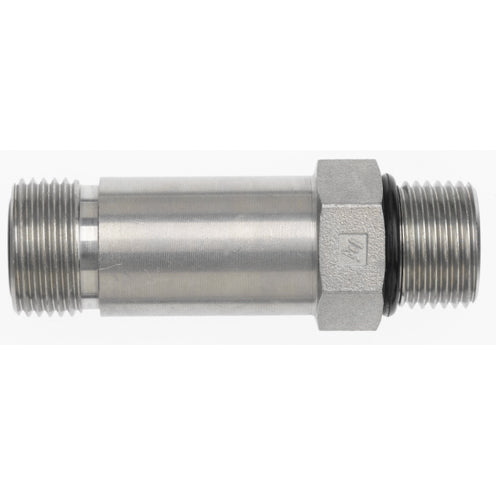

FS6400-L-12-10-O by Brennan Inc. | -12 Male Face Seal x -10 Male O-Ring Boss | Straight Long | Steel

FS6400-L-12-10-O by Brennan Inc. | -12 Male Face Seal x -10 Male O-Ring Boss | Straight Long | Steel

$11.39 - $11.39
$11.39
$14.44
$14.44 - $14.44
$14.44

Brennan Inc.
O-Ring Face Seal Fittings: FS6400-L-O - Male Face Seal x Male O-Ring Boss Straight (Long)
Specifications for Variant SKU: FS6400-L-12-10-O Brennan
Shape (Orientation): Straight
Ends Configuration: 3/4in Male O-Ring Face Seal, 5/8in Male O-Ring Boss
Material(s): Steel
Part Number Material Tube O.D. AThread BThread ADrill BDrill LLength HHex
FS6400-L-04-04-O Steel 1/4" 9/16-18" 7/16-20" 0.172" 0.172" 2.070" 0.625"
FS6400-L-06-06-O Steel 3/8" 11/16-16" 9/16-18" 0.264" 0.264" 2.272" 0.750"
FS6400-L-08-08-O Steel 1/2" 13/16-16" 3/4-16" 0.378" 0.378" 2.671" 0.875"
FS6400-L-10-10-O Steel 5/8" 1-14" 7/8-14" 0.484" 0.484" 3.130" 1.062"
FS6400-L-10-12-O Steel - - - - - - -
FS6400-L-12-10-O Steel 3/4" 1-3/16-12" 7/8-14" 0.609" 0.484" 3.660" 1.250"
FS6400-L-12-12-O Steel 3/4" 1-3/16-12" 1-1/16-12" 0.609" 0.609" 3.758" 1.250"
FS6400-L-16-16-O Steel 1" 1-7/16-12" 1-5/16-12" 0.811" 0.811" 4.138" 1.500"
FS6400-L-20-20-O Steel 1-1/4" 1-11/16-12" 1-5/8-12" 1.024" 1.024" 4.760" 1.875"
FS6400-L-24-24-O Steel 1-1/2" 2-12" 1-7/8-12" 1.260" 1.260" 5.258" 2.125"
