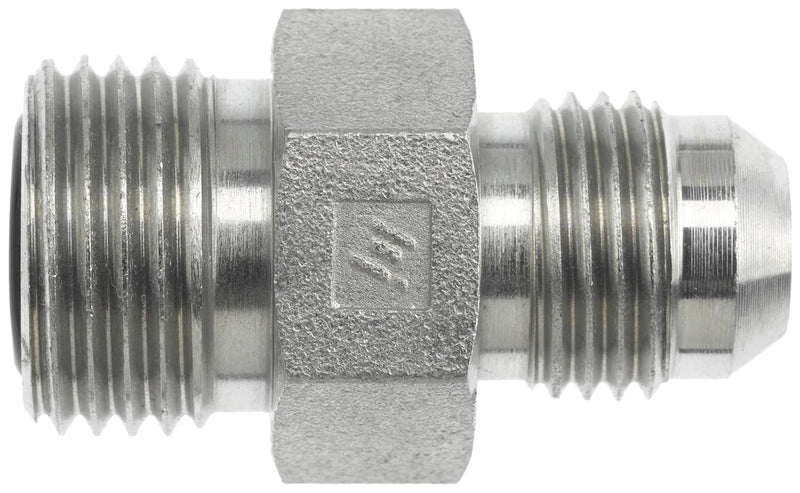

FS6403-20-20 by Brennan Inc. | -20 Male Face Seal x -20 Male JIC | Straight | Steel

Name: FS6403-20-20 by Brennan Inc. | -20 Male Face Seal x -20 Male JIC | Straight | Steel
Brand: Brennan Inc
SKU: FS6403-20-20 Brennan
Price: 26.63 USD
Availability: InStock

$20.98 - $20.98

$20.98

$26.63

$26.63 - $26.63

$26.63

Brennan Inc.
O-Ring Face Seal Fittings: FS6403 - Male Face Seal x Male JIC Straight

Quantity

Specifications for Variant SKU: FS6403-20-20 Brennan
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Male O-Ring Face Seal, 1-1/4in Male JIC
Material(s):	Steel


Part Number	Material	Tube O.D.	AThread	BThread	ADrill	BDrill	LLength	HHex
FS6403-04-04	Steel	1/4"	9/16-18"	7/16-20"	0.172"	0.172"	1.250"	0.625"
FS6403-06-06	Steel	3/8"	11/16-16"	9/16-18"	0.264"	0.264"	1.350"	0.750"
FS6403-08-08	Steel	1/2"	13/16-16"	3/4-16"	0.378"	0.378"	1.540"	0.875"
FS6403-10-10	Steel	5/8"	1-14"	7/8-14"	0.484"	0.484"	1.820"	1.062"
FS6403-12-12	Steel	3/4"	1-3/16-12"	1-1/16-12"	0.609"	0.609"	2.050"	1.250"
FS6403-16-16	Steel	1"	1-7/16-12"	1-5/16-12"	0.811"	0.844"	2.161"	1.500"
FS6403-20-20	Steel	1-1/4"	1-11/16-12"	1-5/8-12"	1.024"	1.024"	2.290"	1.750"
FS6403-24-24	Steel	1-1/2"	2-12"	1-7/8-12"	1.260"	1.312"	2.480"	2.125"

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
