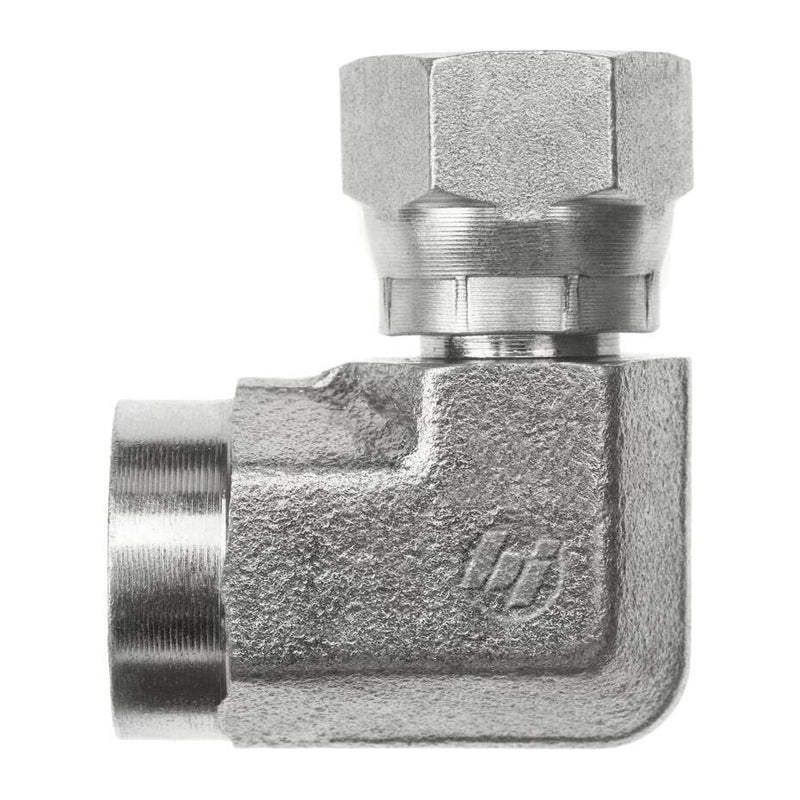

FS6503-06-06-FG by Brennan Inc. | -06 Female Pipe x -06 Female Face Seal Swivel | 90° Elbow | Forged Steel

FS6503-06-06-FG by Brennan Inc. | -06 Female Pipe x -06 Female Face Seal Swivel | 90° Elbow | Forged Steel

Save $9.39 Save $9.39
$23.48
$23.48 - $23.48
$23.48
$14.09
$14.09 - $14.09
$14.09

Brennan Inc.
O-Ring Face Seal Fittings: FS6503 - Female Pipe x Female Face Seal Swivel 90° Elbow
Specifications for Variant SKU: FS6503-06-06-FG Brennan
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Female NPT, 3/8in Female O-Ring Face Seal
Material(s): Steel
Special Properties: Swivel
Part Number Material Tube O.D. AThread BThread BDrill NLength AAALength CHex JJFlats
FS6503-06-06-FG Steel 3/8" 3/8-18" 11/16-16" 0.264" 1.020" 1.320" 0.812" 0.875"

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
