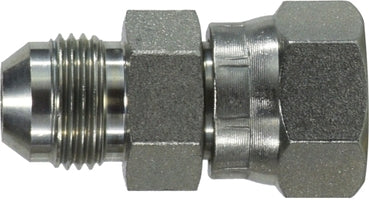

FS650488 (FS6504-8-8) Midland Male JIC 37° Flare to Flat Face Swivel - 3/4-16 Male Male JIC Thread - 13/16-16 Face Seal Female Thread - Steel

FS650488 by Midland | Hydraulic JIC to Flat Face Swivel | 3/4-16 Male JIC 37° Flare x 13/16-16 Female O-Ring Face Seal | Steel

Save $4.21 Save $4.21
$10.52
$10.52 - $10.52
$10.52
$6.31
$6.31 - $6.31
$6.31

Midland Industries
Hydraulic Adapters: JIC to Flat Face Swivel - Steel

Inventory @ Manufacturers Warehouse: 86 Units
Specifications for Variant SKU: FS650488 Midland
Shape (Orientation): Straight
Ends Configuration: 1/2in Male JIC, 1/2in Female O-Ring Face Seal
Material(s): Steel
Technical Info:
Crossover Series:
FF6504 FF1296
Part Number Male JIC 37° Flare Thread
(1)		 Female O-Ring Face Seal Thread
(2)
FS650444
(FS6504-44) 		7/16-20 9/16-18
FS650466
(FS6504-66) 		9/16-18 11/16-16
FS650488
(FS6504-88) 		3/4-16 13/16-16
FS65041010
(FS6504-10-10) 		7/8-14 1-14
FS65041616
(FS6504-16-16) 		1-5/16-12 1-7/16-12

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
