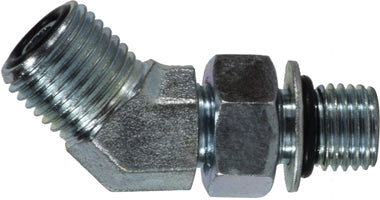

FS680288 (FS68028-8-8) Midland Hydraulic ORFS to ORB 45° Elbow - 13/16-16 Male O-Ring Face Seal x 3/4-16 Male O-Ring Boss - Steel

FS680288 by Midland | Hydraulic ORFS to ORB | 13/16-16 Male O-Ring Face Seal x 3/4-16 Male O-Ring Boss | 45° Elbow | Steel

Save $8.67 Save $8.67
$21.67
$21.67 - $21.67
$21.67
$13.00
$13.00 - $13.00
$13.00

Midland Industries
Hydraulic Adapters: ORFS to ORB 45° Elbow - Steel

Inventory @ Manufacturers Warehouse: 6 Units
Specifications for Variant SKU: FS680288 Midland
Shape (Orientation): 45 Degree
Ends Configuration: 1/2in Male O-Ring Face Seal, 1/2in Male O-Ring Boss
Material(s): Steel
Technical Info:
Crossover Series:
FF6802 4365 V5OLO
Part Number Male O-Ring Face Seal
(1)		 Male O-Ring Face Seal
Thread
(1)		 Male O-Ring Boss
(2)		 Male O-Ring Boss
Thread
(2)
FS680244
(FS68024-4-4) 		1/4" 9/16-18 1/4" 7/16-20
FS680264 3/8" 11/16-16 1/4" 7/16-12
FS680266
(FS68026-6-6) 		3/8" 11/16-16 3/8" 9/16-18
FS680268 3/8" 11/16-16 1/2" 3/4-16
FS6802610 3/8" 11/16-16 5/8" 7/8-14
FS680286 1/2" 13/16-16 3/8" 9/16-18
FS680288
(FS68028-8-8) 		1/2" 13/16-16 1/2" 3/4-16
FS68021010
(FS680210-10-10) 		5/8" 1-14 5/8" 7/8-14
FS68021212
(FS680212-12-12) 		3/4" 1-3/16-12 3/4" 1-1/16-12
FS68021616
(FS680216-16-16)		 1" 1-7/16-12 1" 1-5/16-12
