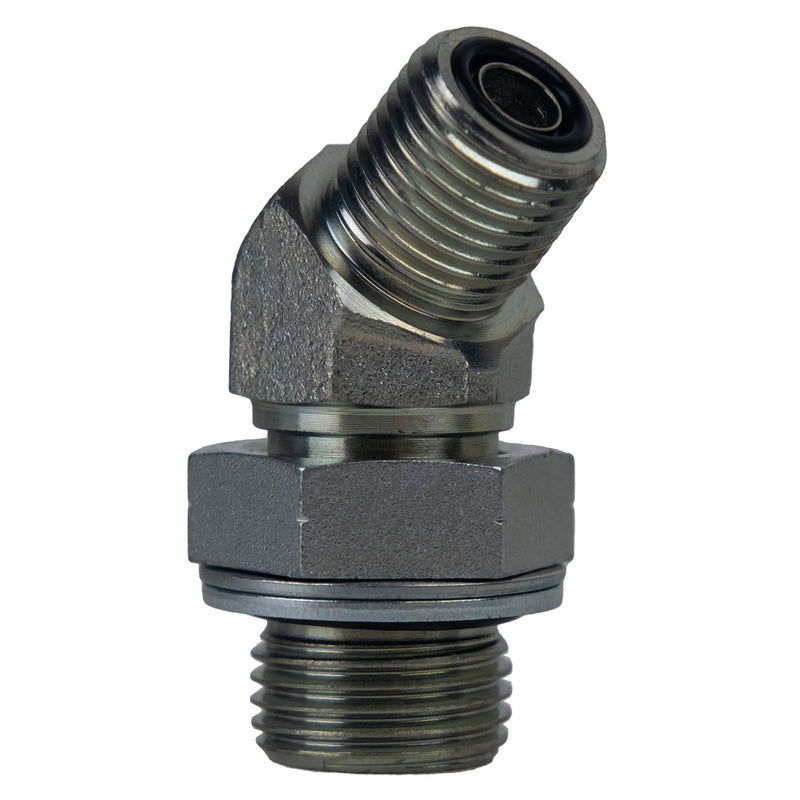

FS7102-04-04-NWO by Midland | Hydraulic Adapter | 45° Elbow | 1/4" Male O-Ring Face Seal x 1/4" Male BSPP | Steel

FS7102-04-04-NWO by Midland | Hydraulic Adapter | 45° Elbow | 1/4" Male O-Ring Face Seal x 1/4" Male BSPP | Steel

Save $3.16 Save $3.16
$5.25
$5.25 - $5.25
$5.25
$2.09
$2.09 - $2.09
$2.09

Midland Industries
Hydraulic Adapters: ORFS to BSPP - 45° Elbow - Steel

Inventory @ Manufacturers Warehouse: 96 Units
Specifications for Variant SKU: FS7102-04-04-NWO Midland
Shape (Orientation): 45 Degree
Ends Configuration: 1/4in Male O-Ring Face Seal, 1/4in Male BSPP
Material(s): Steel
Technical Info:
Part Number Male O-Ring Face Seal
(1)		 Male O-Ring Face Seal
Thread
(1)		 Male BSPP
(2)		 Male BSPP
Thread
(2)
FS7102-04-04-NWO 1/4" 9/16-18 1/4" 1/4-16
FS7102-06-06-NWO 3/8" 11/16-16 3/8" 3/8-19
FS7102-06-08-NWO 3/8" 11/16-16 1/2" 1/2-14
FS7102-08-06-NWO 1/2" 13/16-16 3/8" 3/8-16

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
