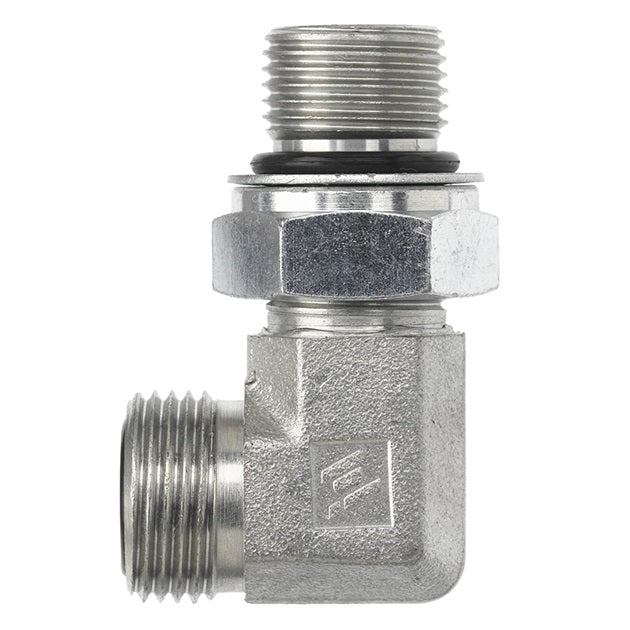

FS7205-10-22-NWO-FG by Brennan Inc. | -10 Male Face Seal x 22mm Male Metric Adjustable O-Ring Boss | 90° Elbow | Forged Steel

FS7205-10-22-NWO-FG by Brennan Inc. | -10 Male Face Seal x 22mm Male Metric Adjustable O-Ring Boss | 90° Elbow | Forged Steel

$16.77 - $16.77
$16.77
$21.28
$21.28 - $21.28
$21.28

Brennan Inc.
O-Ring Face Seal Fittings: FS7205-NWO - Male Face Seal x Male Metric Adjustable O-Ring Boss 90 Degree Elbow
Specifications for Variant SKU: FS7205-10-22-NWO-FG Brennan
Ends Configuration: 5/8in Male O-Ring Face Seal, 22mm Male O-Ring Boss
Material(s): Steel
Part Number Material TubeO.D AThread BThread ADrill BDrill MLength NLength C4Hex JJHex
FS7205-04-12-NWO-FG Steel 1/4" 9/16-18" M12 x 1.5" 4.40mm 4.00mm 21.5mm 33.0mm 17.0mm 14.0mm
FS7205-04-14-NWO-FG Steel 1/4" 9/16-18" M14 x 1.5" 4.50mm 6.00mm 23.5mm 35.5mm 19.0mm 17.0mm
FS7205-06-14-NWO-FG Steel 3/8" 11/16-16" M14 x 1.5" 6.50mm 6.00mm 25.0mm 35.5mm 19.0mm 17.0mm
FS7205-08-18-NWO-FG Steel 1/2" 13/16-16" M18 x 1.5" 9.60mm 9.00mm 28.0mm 41.0mm 24.0mm 19.0mm
FS7205-10-22-NWO-FG Steel 5/8" 1-14" M22 x 1.5" 12.29mm 12.0mm 33.3mm 49.0mm 27.0mm 27.0mm
FS7205-12-22-NWO-FG Steel 3/4" 1-3/16-12" M22 x 1.5" 15.50mm 12.00mm 37.3mm 49.0mm 27.0mm 27.0mm
FS7205-12-27-NWO-FG Steel 3/4" 1-3/16-12" M27 x 2.0" 15.50mm 15.00mm 37.5mm 55.5mm 32.0mm 30.0mm
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
