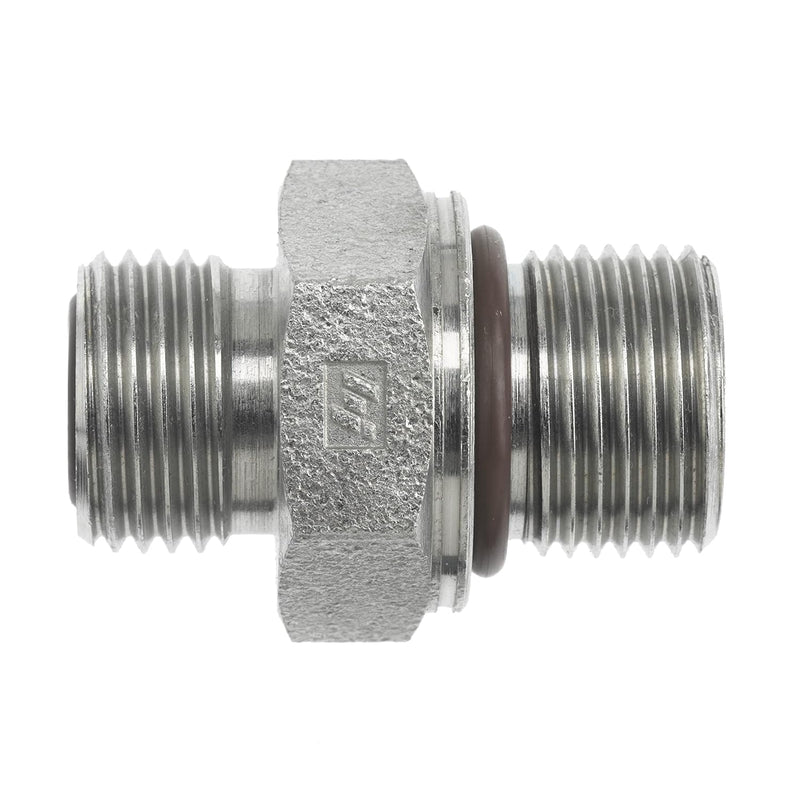

FS7640-08-18-O by Brennan Inc. | -08 Male Face Seal x 18mm Male Metric | Straight | ISO6149-2 | Steel

FS7640-08-18-O by Brennan Inc. | -08 Male Face Seal x 18mm Male Metric | Straight | ISO6149-2 | Steel

$5.41 - $5.41
$5.41
$6.87
$6.87 - $6.87
$6.87

Brennan Inc.
O-Ring Face Seal Fittings: FS7640-O - Male Face Seal x Male Metric Straight (ISO6149-2)
Specifications for Variant SKU: FS7640-08-18-O Brennan
Shape (Orientation): Straight
Ends Configuration: 1/2in Male O-Ring Face Seal, 18mm Male Metric
Material(s): Steel
Part Number Material TubeO.D AThread BThread ADrill BDrill LLength CHex
FS7640-04-10-O Steel 1/4" 9/16-18" Ml0X1 4.4mm 3.0mm 27.0mm 17.0mm
FS7640-04-12-O Steel 1/4" 9/16-18" M12X1.5 4.5mm 4.0mm 28.5mm 17.0mm
FS7640-04-14-O Steel 1/4" 9/16-18" M14X1.5 4.37mm 6.0mm 29.5mm 19.0mm
FS7640-06-12-O Steel 3/8" 11/16-16" M12X1.5 6.5mm 4.0mm 32.0mm 19.0mm
FS7640-06-14-O Steel 3/8" 11/16-16" M14X1.5 6.5mm 6.0mm 32.0mm 19.0mm
FS7640-06-16-O Steel 3/8" 11/16-16" M16X1.5 6.5mm 7.0mm 33.5mm 22.0mm
FS7640-06-18-O Steel 3/8" 11/16-16" M18X1.5 6.5mm 9.0mm 36.0mm 24.0mm
FS7640-08-14-O Steel 1/2" 13/16-16" Ml4X1.5 9.6mm 6.0mm 35.0mm 22.0mm
FS7640-08-16-O Steel 1/2" 13/16-16" M16X1.5 9.5mm 7.0mm 36.5mm 22.0mm
FS7640-08-18-O Steel 1/2" 13/16-16" M18X1.5 9.5mm 9.0mm 38.0mm 24.0mm
FS7640-08-22-O Steel 1/2" 13/16-16" M22X1.5 9.6mm 12.0mm 39.5mm 27.0mm
FS7640-08-27-O Steel 12" 13/16-16" M27X2.0 9.5mm 15.0mm 44.5mm 32.0mm
FS7640-10-18-O Steel 5/8" 1-14" M18X1.5 12.5mm 9.0mm 41.0mm 27.0mm
FS7640-10-22-O Steel 5/8" 1-14" M22X1.5 12.5mm 12.0mm 42.0mm 27.0mm
FS7640-10-27-O Steel 5/8" 1-14" M27X2.0 15.5mm 15.0mm 48.5mm 32.0mm
FS7640-12-22-O Steel 3/4" 1-3/16-12" M22X1.5 15.5mm 11.0mm 47.5mm 32.0mm
FS7640-12-27-O Steel 3/4" 1-3/16-12" M27X2.0 15.5mm 15.0mm 48.5mm 32.0mm
FS7640-16-33-O Steel 1" 1-7/16-12" M33X2.0 20.5mm 20.0mm 52.0mm 41.0mm
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
