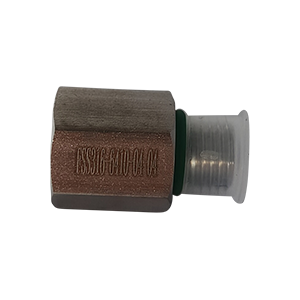

FSS316-6410-16-20 Foster | Stainless Steel SAE/ORB Male x Female Reducer/Expander

FSS316-6410-16-20 by Foster | Reducer/Expander | 1" Male SAE O-Ring Boss x 1-1/4" Female SAE O-Ring Boss | Straight | 316 Stainless Steel

Save $10.63 Save $10.63
$38.11
$38.11 - $38.11
$38.11
$27.48
$27.48 - $27.48
$27.48

Foster
Stainless Steel ORB Fittings:Stainless Steel SAE/ORB Male x Female Reducer/Expander
Specifications for Variant SKU: FSS316-6410-16-20 ZSi-Foster
Shape (Orientation): Straight
Ends Configuration: 1in Male O-Ring Boss, 1-1/4in Female O-Ring Boss, Some Ends Match
Material(s): 316 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Leak Resistant
Part Number Male O-Ring Boss Female O-Ring Boss Material
FSS316-6410-04-04 1/4" 1/4" 316 Stainless Steel
FSS316-6410-04-06 1/4" 3/8" 316 Stainless Steel
FSS316-6410-04-08 1/4" 1/2" 316 Stainless Steel
FSS316-6410-06-04 3/8" 1/4" 316 Stainless Steel
FSS316-6410-06-06 3/8" 3/8" 316 Stainless Steel
FSS316-6410-06-08 3/8" 1/2" 316 Stainless Steel
FSS316-6410-08-04 1/2" 1/4" 316 Stainless Steel
FSS316-6410-08-06 1/2" 3/8" 316 Stainless Steel
FSS316-6410-08-08 1/2" 1/2" 316 Stainless Steel
FSS316-6410-08-10 1/2" 5/8" 316 Stainless Steel
FSS316-6410-08-12 1/2" 3/4" 316 Stainless Steel
FSS316-6410-10-04 5/8" 1/4" 316 Stainless Steel
FSS316-6410-10-06 5/8" 3/8" 316 Stainless Steel
FSS316-6410-10-08 5/8" 1/2" 316 Stainless Steel
FSS316-6410-10-12 5/8" 3/4" 316 Stainless Steel
FSS316-6410-12-04 3/4" 1/4" 316 Stainless Steel
FSS316-6410-12-06 3/4" 3/8" 316 Stainless Steel
FSS316-6410-12-08 3/4" 1/2" 316 Stainless Steel
FSS316-6410-12-10 3/4" 5/8" 316 Stainless Steel
FSS316-6410-12-16 3/4" 1" 316 Stainless Steel
FSS316-6410-16-08 1" 1/2" 316 Stainless Steel
FSS316-6410-16-12 1" 3/4" 316 Stainless Steel
FSS316-6410-16-20 1" 1-1/4" 316 Stainless Steel
FSS316-6410-16-24 1" 1-1/2" 316 Stainless Steel
FSS316-6410-16-32 1" 2" 316 Stainless Steel

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
