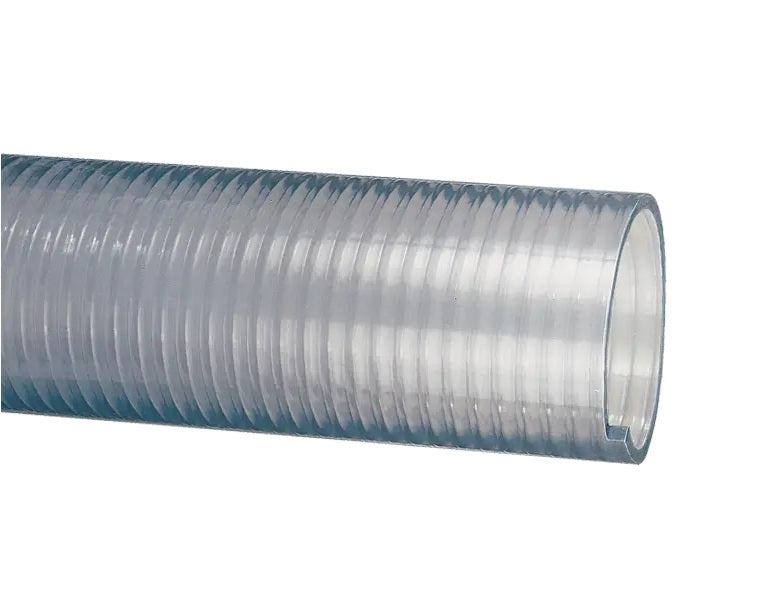

FT300X200 Tigerflex® by Kuriyama | FT™ Series | Heavy-Duty Food Grade Suction Hose | PVC | 3" ID | 3.42" OD | 200ft Length

FT300X200 Tigerflex® by Kuriyama | FT™ Series | Heavy-Duty Food Grade Suction Hose | PVC | 3" ID | 3.42" OD | 200ft Length

$0.00 - $0.00
$0.00
$2,115.60
$2,115.60 - $2,115.60
$2,115.60
Specifications for Variant SKU: FT300X200 Kuriyama | 200 |
Food Grade Suction & Discharge Hose

Kuriyama Tigerflex® FT Series

Transparent PVC hose designed for transferring food-grade liquids, dairy products, ice and other materials in suction and discharge applications.

✓

Food Grade

FDA, USDA and 3-A compliant materials

◎

See the Flow

Transparent construction provides visual confirmation

⚙

Smooth Cover

Provides a smooth surface for banding

★

Made in USA

Manufactured in the United States

1

What is this product used for?
  • Milk and dairy product transfer
  • Beer, wine and juice transfer
  • Food-grade liquid transfer
  • Ice transfer
  • Poultry processing
  • Suction and discharge applications
2

What are the key specifications?
Tube

PVC

Reinforcement

Rigid PVC helix

Cover

Not separately specified

Temperature Range

-4°F (-20°C) to +150°F (+65°C)

Construction

Transparent PVC with a smooth outer surface

Specifications

3-A, BSE/TSE, FDA, phthalate free, RoHS and USDA

3

What are the main product features?
  • Food-Grade Materials — Complies with applicable FDA, 3-A and USDA requirements.
  • Transparent Construction — See-the-flow design allows visual confirmation of material movement.
  • Smooth Outer Cover — Provides an increased pressure rating and a smooth surface for banding.
  • Made in the USA — Manufactured in the United States.
4

Which sizes and lengths are available?
Part Number Inside Diameter Outside Diameter Working Pressure Vacuum Rating Minimum Bending Radius Length Weight
in mm in mm at 68°F at 104°F at 68°F at 104°F at 68°F ft lbs/ft
FT075X100 3/4" 19.0 0.94" 24.0 115 PSI 75 PSI Full 28 in Hg 3" 100 0.17
FT100X100 1" 25.5 1.28" 32.5 100 PSI 70 PSI Full 28 in Hg 3" 100 0.24
FT100X200 1" 25.5 1.28" 32.5 100 PSI 70 PSI Full 28 in Hg 3" 200 0.24
FT125X100 1-1/4" 32.0 1.56" 39.6 90 PSI 65 PSI Full 28 in Hg 4" 100 0.44
FT150X100 1-1/2" 38.1 1.80" 46.5 85 PSI 60 PSI Full 28 in Hg 6" 100 0.50
FT200X100 2" 50.8 2.36" 60.0 85 PSI 60 PSI Full 26 in Hg 8" 100 0.71
FT200X200 2" 50.8 2.36" 60.0 85 PSI 60 PSI Full 26 in Hg 8" 200 0.71
FT250X100 2-1/2" 63.5 2.88" 73.2 65 PSI 45 PSI Full 26 in Hg 10" 100 0.94
FT300X100 3" 76.2 3.42" 86.9 55 PSI 40 PSI Full 24 in Hg 11" 100 1.14
FT300X200 3" 76.2 3.42" 86.9 55 PSI 40 PSI Full 24 in Hg 11" 200 1.14
FT400X60 4" 101.6 4.51" 114.6 50 PSI 35 PSI Full 24 in Hg 18" 60 1.91
FT400X100 4" 101.6 4.51" 114.6 50 PSI 35 PSI Full 24 in Hg 18" 100 1.91
FT500X100 5" 127.0 5.51" 140.0 40 PSI 25 PSI 28 in Hg 23 in Hg 28" 100 2.41
5

Where can I find product documents?
PDF

Kuriyama Tigerflex Hose Specifications Guide

Review the manufacturer specifications guide for additional compliance, construction and application information.

i
The actual service temperature range and product service life may vary depending on the application, operating conditions and material being conveyed.

How is this product sold?

Available in 60-, 100- and 200-foot lengths, depending on hose size.
