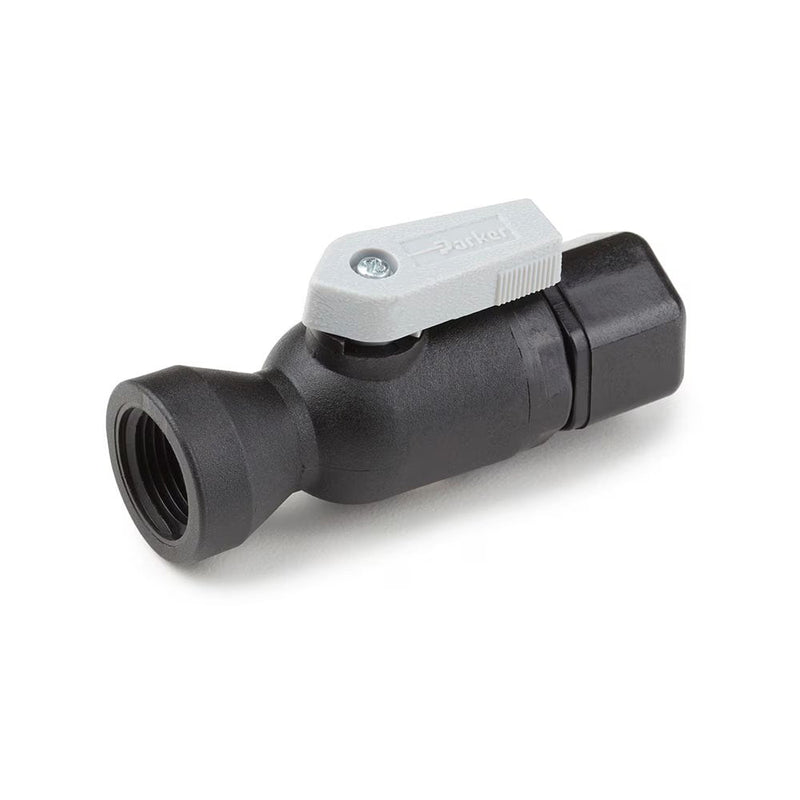

FTPPB8VFC6 by Parker | Ball Valve | 1/2" Tube Size x 3/8" Female NPTF Thread | 3.00" Length | Straight | Black | Polypropylene

FTPPB8VFC6 by Parker | Ball Valve | 1/2" Tube Size x 3/8" Female NPTF Thread | 3.00" Length | Straight | Black | Polypropylene

Save $4.63 Save $4.63
$11.58
$11.58 - $11.58
$11.58
$6.95
$6.95 - $6.95
$6.95

by Parker Hannifin
Ball Valves Polypropylene:Valve Female Connector
Specifications for Variant SKU: FTPPB8VFC6 Parker
Brand: Fast & Tite®
Series: VFC Series
Shape (Orientation): Straight
Material(s): Polypropylene
Seal Material(s): EPDM
Product Features:
  • Wide chemical acceptance range
  • Bi-directional flow maximizes productivity
  • Full flow reduces pressure drop across valve
  • EPDM Seals – LIQUIfit, TrueSeal, and Par-barb
  • Nitrile Seals – Fast and Tite
  • Push-in and barbed connections
  • Meets FDA and NSF/ANSI 51 requirements for food contact
  • LIQUIfit, Par-Barb, and TrueSeal meet NSF/ANSI 61 requirements
Advantages:
  • Reduce costs – Built in LIQUIfit, TrueSeal and Par-Barb connections eliminates the need for a secondary fitting.
  • Save Space – Low-profile design allows for easy assembly and access where space is a concern.
Type:
  • LFPP – LIQUIfit
  • PP – TrueSeal
  • PBPP – Par-Barb
  • FTPPB - Fast and Tite
Specification:
Temperature Range: 35° to +200° F (+1.7° to +93.3° C)
Pressure Range:
  • Up to 150 PSI (10.3 bar)
Part Number Tube Size NPTF Thread Size A B C D ØE Thru Hole Min
FTPPB4VFC4 1/4" 1/4" 2.78" 1.61" 1.4" .50" .19"
FTPPB6VFC6 3/8" 3/8" 2.93" 1.73" 1.4" .50" .25"
FTPPB8VFC6 1/2" 3/8" 3.00" 1.80" 1.4" .50" .25"
