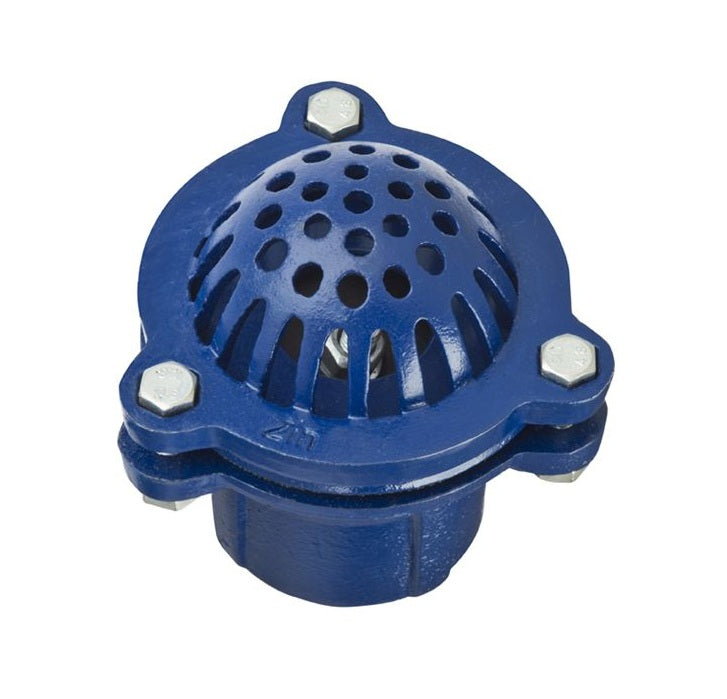

FV600 by Kuriyama | FV Series | Foot Valve | 6" Female NPT | Cast Iron

FV600 by Kuriyama | FV Series | Foot Valve | 6" Female NPT | Cast Iron

Save $99.44 Save $99.44
$425.04
$425.04 - $425.04
$425.04
$325.60
$325.60 - $325.60
$325.60

Kuriyama of America Inc.
FV Series | Foot Valve | Cast Iron

Designed for use in irrigation and other pumping applications.

Prevents the backflow of liquid when pump is turned off.

Prevents passage of contaminants to the pump caused by silt or sand in the water.
Specifications for Variant SKU: FV600 Kuriyama
Series: FV Series
Ends Configuration: 6in Female NPT
Material(s): Cast Iron

What are the Applications?

  • Designed for use in irrigation and other pumping applications.

What are the Features?

  • Prevents the backflow of liquid when pump is turned off.
  • Prevents passage of contaminants to the pump caused by silt or sand in the water.

What are the Materials?

  • Cast iron material.
  • Neoprene flapper valve assembly.
  • Plated steel bolts and nuts.
Part Number Size Range
(in)		 Threads Weight
Each
(lbs)
FV150 1-1/2" Female NPT 2.90 lbs
FV200 2" Female NPT 5.30 lbs
FV250 2-1/2" Female NPT 7.30 lbs
FV300 3" Female NPT 9.00 lbs
FV400 4" Female NPT 17.90 lbs
FV600 6" Female NPT 46.60 lbs
FV800 8" Female NPT 93.70 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
