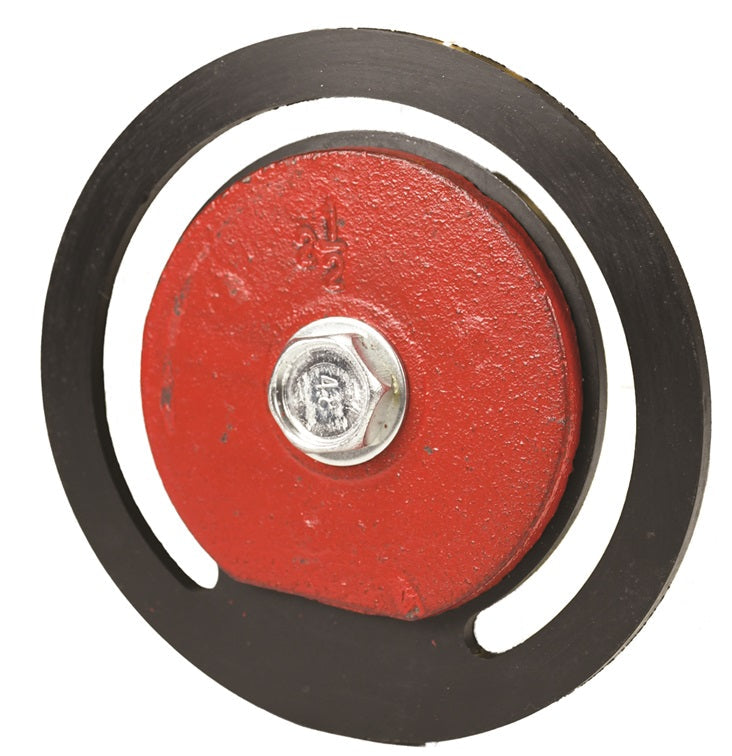

FVFA40 by Dixon Valve | Foot Valve Flapper Assembly | For Use on 4" Foot Valve (DFVS40) | Painted Cast Iron / Rubber

Name: FVFA40 by Dixon Valve | Foot Valve Flapper Assembly | For Use on 4" Foot Valve (DFVS40) | Painted Cast Iron / Rubber
Brand: Dixon
SKU: FVFA40 Dixon
Price: 24.23 USD
Availability: InStock

Save $11.64

$35.87

$35.87 - $35.87

$35.87

$24.23

$24.23 - $24.23

$24.23

Dixon Valve
Foot Valve Replacement Part: Flapper Assembly

For use on water suction hose to prevent pump from losing its prime.

Quantity

Specifications for Variant SKU: FVFA40 Dixon
Material(s):	Cast Iron
Seal Material(s):	Rubber

Safety Notes:
Must be installed in the vertical position. For water service only. Not for compressed air or other compressible gases.
Material:
Flapper Assembly is Painted Cast Iron / Rubber

Complete Assembly		Replacement Parts

Foot Valve Part Number	Size	Strainer Part Number	Flapper Assembly Part Number	Flapper Gasket Part Number	Seat Plate Part Number
DFVS20	1-1/2"	FVS20	FVFA20	FVL20	FVSP20
DFVS25	2"	FVS25	FVFA25	FVL25	FVSP25
DFVS30	2-1/2"	FVS30	FVFA30	FVL30	FVSP30
DFVS35	3"	FVS35	FVFA35	FVL35	FVSP35
DFVS40	4"	FVS40	FVFA40	FVL40	FVSP40
DFVS60	6"	FVS60	FVFA60	FVL60	FVSP60
DFVS80	8"	FVS80	FVFA80	FVL80	FVSP80
