FVL35 by Dixon Valve | Foot Valve Flapper Gasket | For Use on 3" Foot Valve (DFVS35) | Rubber

Name: FVL35 by Dixon Valve | Foot Valve Flapper Gasket | For Use on 3" Foot Valve (DFVS35) | Rubber
Brand: Dixon
SKU: FVL35 Dixon
Price: 6.17 USD
Availability: InStock

Save $4.11

$10.28

$10.28 - $10.28

$10.28

$6.17

$6.17 - $6.17

$6.17

Dixon Valve

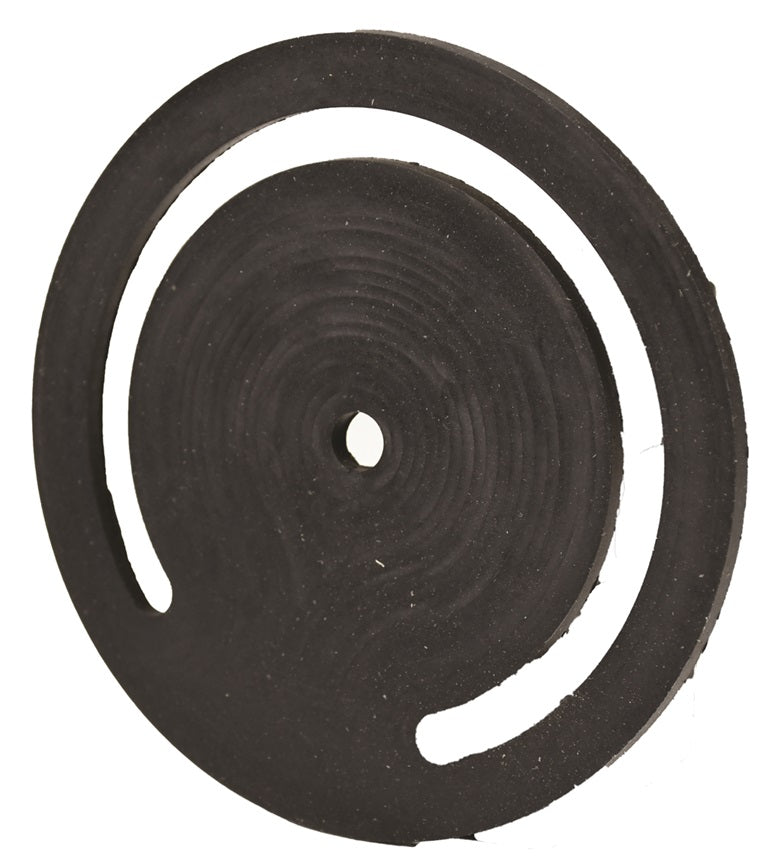

Foot Valve Replacement Part: Flapper Gasket

For use on water suction hose to prevent pump from losing its prime.

Specifications for Variant SKU: FVL35 Dixon
Seal Material(s):	Rubber

Safety Notes:
Must be installed in the vertical position. For water service only. Not for compressed air or other compressible gases.
Material:
Flapper Gasket is Rubber

Complete Assembly		Replacement Parts

Foot Valve Part Number	Size	Strainer Part Number	Flapper Assembly Part Number	Flapper Gasket Part Number	Seat Plate Part Number
DFVS20	1-1/2"	FVS20	FVFA20	FVL20	FVSP20
DFVS25	2"	FVS25	FVFA25	FVL25	FVSP25
DFVS30	2-1/2"	FVS30	FVFA30	FVL30	FVSP30
DFVS35	3"	FVS35	FVFA35	FVL35	FVSP35
DFVS40	4"	FVS40	FVFA40	FVL40	FVSP40
DFVS60	6"	FVS60	FVFA60	FVL60	FVSP60
DFVS80	8"	FVS80	FVFA80	FVL80	FVSP80
