FVL30 by Dixon Valve | Foot Valve Flapper Gasket | For Use on 2-1/2" Foot Valve (DFVS30) | Rubber

Name: FVL30 by Dixon Valve | Foot Valve Flapper Gasket | For Use on 2-1/2" Foot Valve (DFVS30) | Rubber
Brand: Dixon
SKU: FVL30 Dixon
Price: 4.57 USD
Availability: InStock

Save $3.05

$7.62

$7.62 - $7.62

$7.62

$4.57

$4.57 - $4.57

$4.57

Dixon Valve

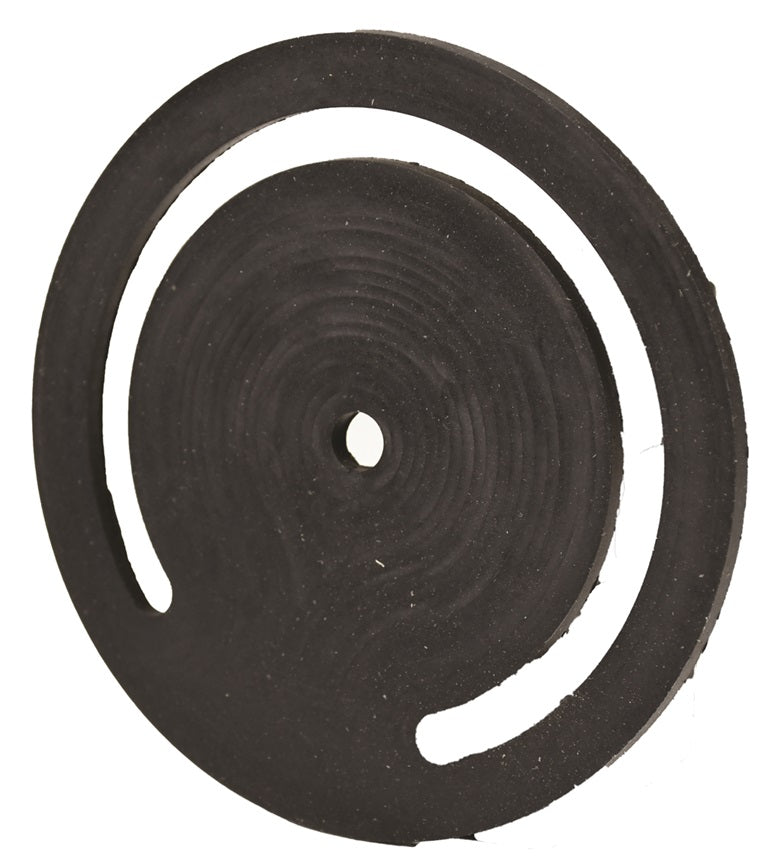

Foot Valve Replacement Part: Flapper Gasket

For use on water suction hose to prevent pump from losing its prime.

Specifications for Variant SKU: FVL30 Dixon
Seal Material(s):	Rubber

Safety Notes:
Must be installed in the vertical position. For water service only. Not for compressed air or other compressible gases.
Material:
Flapper Gasket is Rubber

Complete Assembly		Replacement Parts

Foot Valve Part Number	Size	Strainer Part Number	Flapper Assembly Part Number	Flapper Gasket Part Number	Seat Plate Part Number
DFVS20	1-1/2"	FVS20	FVFA20	FVL20	FVSP20
DFVS25	2"	FVS25	FVFA25	FVL25	FVSP25
DFVS30	2-1/2"	FVS30	FVFA30	FVL30	FVSP30
DFVS35	3"	FVS35	FVFA35	FVL35	FVSP35
DFVS40	4"	FVS40	FVFA40	FVL40	FVSP40
DFVS60	6"	FVS60	FVFA60	FVL60	FVSP60
DFVS80	8"	FVS80	FVFA80	FVL80	FVSP80

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.

Shop Parts by Dixon Valve & Coupling
