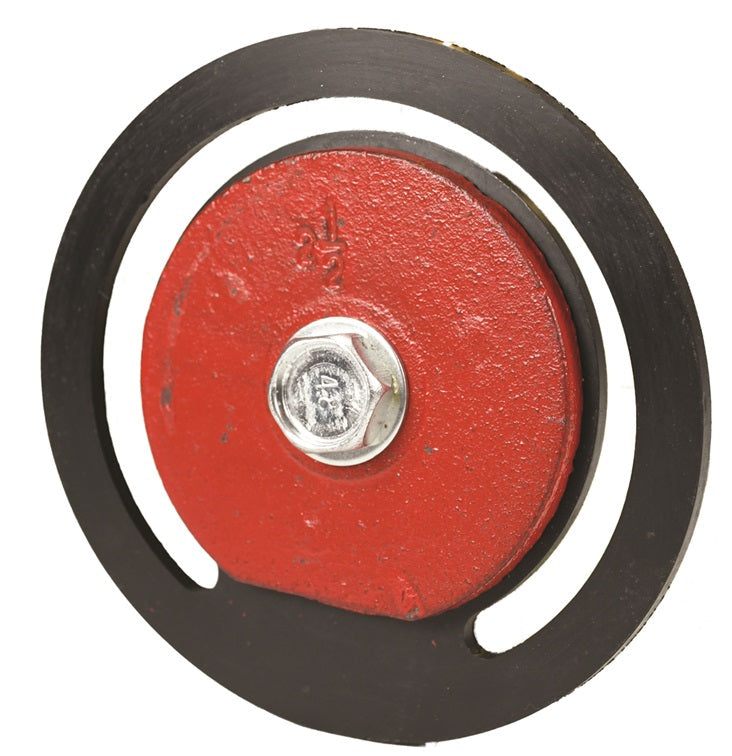

FVFA20 by Dixon Valve | Foot Valve Flapper Assembly | For Use on 1-1/2" Foot Valve (DFVS20) | Painted Cast Iron / Rubber

FVFA20 by Dixon Valve | Foot Valve Flapper Assembly | For Use on 1-1/2" Foot Valve (DFVS20) | Painted Cast Iron / Rubber

Save $3.58 Save $3.58
$8.95
$8.95 - $8.95
$8.95
$5.37
$5.37 - $5.37
$5.37

Dixon Valve
Foot Valve Replacement Part: Flapper Assembly

For use on water suction hose to prevent pump from losing its prime.
Specifications for Variant SKU: FVFA20 Dixon
Material(s): Cast Iron
Seal Material(s): Rubber
Safety Notes:
  • Must be installed in the vertical position.
  • For water service only.
  • Not for compressed air or other compressible gases.
Material:
  • Flapper Assembly is Painted Cast Iron / Rubber
Complete Assembly Replacement Parts

Foot Valve
Part Number		 Size Strainer
Part Number		 Flapper Assembly
Part Number		 Flapper Gasket
Part Number		 Seat Plate
Part Number
DFVS20 1-1/2" FVS20 FVFA20 FVL20 FVSP20
DFVS25 2" FVS25 FVFA25 FVL25 FVSP25
DFVS30 2-1/2" FVS30 FVFA30 FVL30 FVSP30
DFVS35 3" FVS35 FVFA35 FVL35 FVSP35
DFVS40 4" FVS40 FVFA40 FVL40 FVSP40
DFVS60 6" FVS60 FVFA60 FVL60 FVSP60
DFVS80 8" FVS80 FVFA80 FVL80 FVSP80
