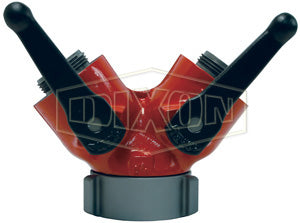

FWV25F25F Dixon Cast Aluminum Forestry Grade 1/4 Turn Ball Type Wye Valve - 2-1/2" Female NST(NH) x (two) 2-1/2" Male NST(NH)

FWV25F25F Dixon Cast Aluminum Forestry Grade 1/4 Turn Ball Type Wye Valve - 2-1/2" Female NST(NH) x (two) 2-1/2" Male NST(NH)

Save $994.37 Save $994.37
$2,485.92
$2,485.92 - $2,485.92
$2,485.92
$1,491.55
$1,491.55 - $1,491.55
$1,491.55

Dixon Fire Fittings
Fire Valves / Building Connections - Forestry Grade 1/4 Turn Ball Type Wye Valve

Built to United States Forest Service specifications.
Specifications for Variant SKU: FWV25F25F Dixon
Shape (Orientation): Y
Ends Configuration: 2-1/2in Female NST, 2-1/2in Male NST, 2-1/2in Male NST, Some Ends Match
Material(s): Aluminum
Features:
  • Cast aluminum swivel inlet, anodized body, hard-coated threads.
  • 1" and 1-1/2" for use up to 600 PSI (water/AFFF only); 2-1/2" for use up to 400 PSI (water/AFFF only).
Part Number Female Thread Two Male Threads Weight
(Lbs.)
FWV10S10S 1" NPSH 1" NPSH 1.7900
FWV15S15S 1-1/2" NPSH 1-1/2" NPSH 3.3500
FWV15F15F* 1-1/2" NH (NST) 1-1/2" NH (NST) 3.6600
FWV25F15F 2-1/2" NH (NST) 1-1/2" NH (NST) 4.0700
FWV25F25F 2-1/2" NH (NST) 2-1/2" NH (NST) 11.3250

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
