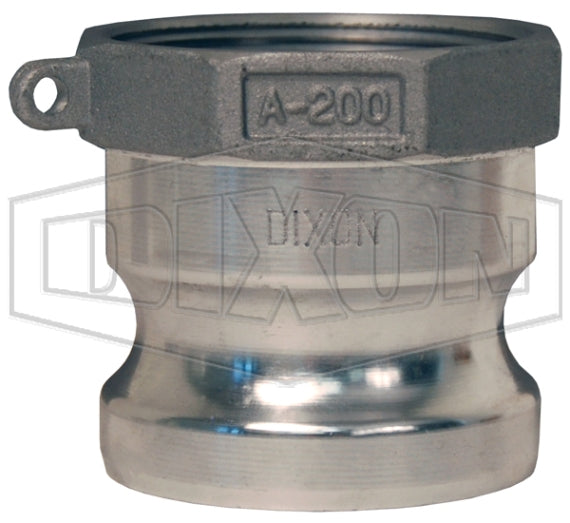

G100-A-AL by Dixon Valve | Global Cam & Groove Adapter | Type A | 1" Adapter x 1" Female NPT | A380 Permanent Mold Aluminum

G100-A-AL by Dixon Valve | Global Cam & Groove Adapter | Type A | 1" Adapter x 1" Female NPT | A380 Permanent Mold Aluminum

Save $0.59 Save $0.59
$5.30
$5.30 - $5.30
$5.30
$4.71
$4.71 - $4.71
$4.71

Dixon Valve
Global Cam & Groove | Type A Adapter | Adapter x Female NPT

Designed for use with liquids.
Specifications for Variant SKU: G100-A-AL Dixon
Shape (Orientation): Straight
Cam Type: Type A
Ends Configuration: 1in Female NPT, 1in Male Cam & Groove
Material(s): Aluminum
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed.
  • No standard exists for the 1/2", 5", and 8", and generally these sizes do not interchange with Dixon, Boss-Lock, or other manufacturers' products.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Designed to interchange with all products produced to A-A-59326D.
A380 Permanent
Mold Aluminum
Part Number		 ASTMC38000
Forged Brass
Part Number		 316 Investment
Cast Stainless Steel
Part Number		 Size Max. Operating Pressure
G50-A-AL* G50-A-BR* G50-A-SS* 1/2" 150 PSI
G75-A-AL G75-A-BR G75-A-SS 3/4" 250 PSI
G100-A-AL G100-A-BR G100-A-SS 1" 250 PSI
G125-A-AL G125-A-BR G125-A-SS 1-1/4" 250 PSI
G150-A-AL G150-A-BR G150-A-SS 1-1/2" 250 PSI
G200-A-AL G200-A-BR G200-A-SS 2" 250 PSI
G250-A-AL G250-A-BR G250-A-SS 2-1/2" 150 PSI
G300-A-AL G300-A-BR G300-A-SS 3" 125 PSI
G400-A-AL G400-A-BR G400-A-SS 4" 100 PSI
G500-A-AL* G500-A-BR* - 5" 75 PSI
G600-A-AL - G600-A-SS 6" 75 PSI
G800-A-AL* - - 8" 50 PSI

* No standard exists for the 1/2", 5", and 8", and generally these sizes do not interchange with other manufacturers' products.
