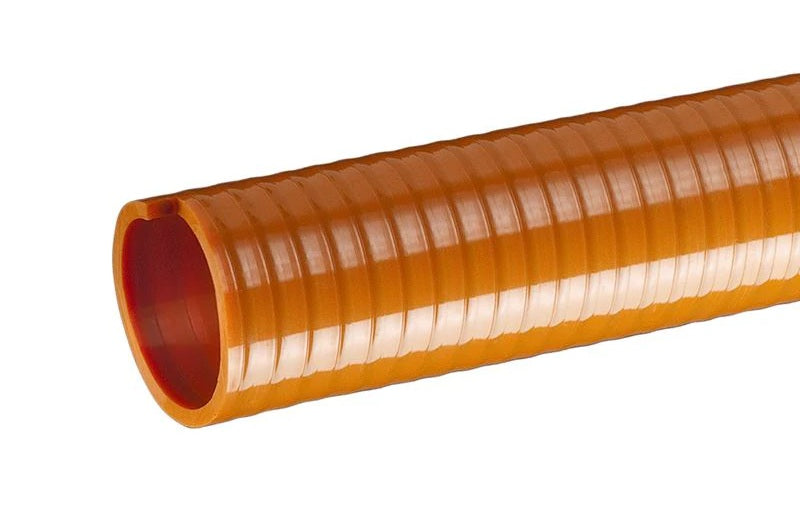

G100X100 Tigerflex® by Kuriyama | G™ Series | Heavy-Duty Liquid Suction Hose | PVC | 1" ID | 1.26" OD | 100ft Length

G100X100 Tigerflex® by Kuriyama | G™ Series | Heavy-Duty Liquid Suction Hose | PVC | 1" ID | 1.26" OD | 100ft Length

Save $61.78 Save $61.78
$261.58
$261.58 - $261.58
$261.58
$199.80
$199.80 - $199.80
$199.80
p>Kuriyama of America Inc.
Tigerflex® | G™ Series | Heavy-Duty Liquid Suction Hose | PVC

Designed for heavy-duty water transfer.

Ideal for irrigation lines, construction and rental dewatering pumps, trash pumps, and demanding water suction applications.

Made in the USA.


Package Quantity: 100 Foot

Specifications for Variant SKU: G100X100 Kuriyama | 100 |
Brand: Tigerflex
Series: G Series
Hose Color(s): Orange
Internal Diameter: 1in
Outer Diameter: 1.26in
Tubing Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
High-Visibility Heavy-Duty PVC Suction Hose

Kuriyama Tigerflex™ G Series

Safety-orange PVC suction hose designed for high visibility in irrigation, dewatering, trash-pump and heavy-duty water-suction applications.

✓

Safety Orange

High-visibility color helps reduce job-site trip and run-over risks

⚙

PVC Helix

Rigid reinforcement supports heavy-duty suction service

☰

Cover Options

Smooth or convoluted design depending on size

★

Made in USA

Manufactured in the United States

1

What is this product used for?
  • Irrigation lines
  • Rental and construction dewatering pumps
  • Trash pumps
  • Heavy-duty water suction
2

What are the key specifications?
Tube

PVC

Reinforcement

Rigid PVC helix

Cover

Smooth or convoluted, depending on size

Temperature Range

-4°F (-20°C) to +150°F (+65°C)

Compliance

Phthalate free and RoHS

Country of Origin

Made in the USA

3

What are the main product features?
  • Safety-Orange Color — Provides high visibility on the job site and helps reduce the risk of running over or tripping over the hose.
  • Smooth Outer Cover on 3/4-Inch Through 4-Inch Sizes — Provides an increased pressure rating and a smooth surface for banding.
  • Convoluted Outer Cover on 6-Inch and 8-Inch Sizes — Provides increased hose flexibility.
  • Made in the USA — Manufactured in the United States.
4

Which sizes and lengths are available?
Part Number Inside Diameter Outside Diameter Working Pressure Vacuum Rating Minimum Bending Radius Length Weight
in mm in mm at 68°F at 104°F at 68°F at 104°F at 68°F ft lbs/ft
G100X100 1" 25.4 1.26" 32.0 100 PSI 65 PSI Full 28 in Hg 3" 100 0.27
G150X100 1-1/2" 38.1 1.83" 46.5 100 PSI 65 PSI Full 26 in Hg 5" 100 0.48
G200X100 2" 50.8 2.38" 60.4 100 PSI 65 PSI Full 26 in Hg 7" 100 0.71
G250X100 2-1/2" 63.5 2.89" 73.4 70 PSI 48 PSI Full 26 in Hg 8" 100 0.96
G300X100 3" 76.2 3.44" 87.4 70 PSI 45 PSI Full 26 in Hg 10" 100 1.25
G400X100 4" 101.6 4.57" 116.1 60 PSI 40 PSI Full 26 in Hg 15" 100 1.95
G600X100 6" 152.4 6.77" 172.0 40 PSI 25 PSI 28 in Hg 22 in Hg 25" 100 3.76
5

Where can I find product documents?
PDF

Kuriyama Tigerflex Hose Specifications Guide

Review the manufacturer specifications guide for additional compliance, construction and application information.

i
The actual service temperature range and product service life may vary depending on the application, operating conditions and material being conveyed.

How is this product sold?

Available in 100-foot lengths.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
