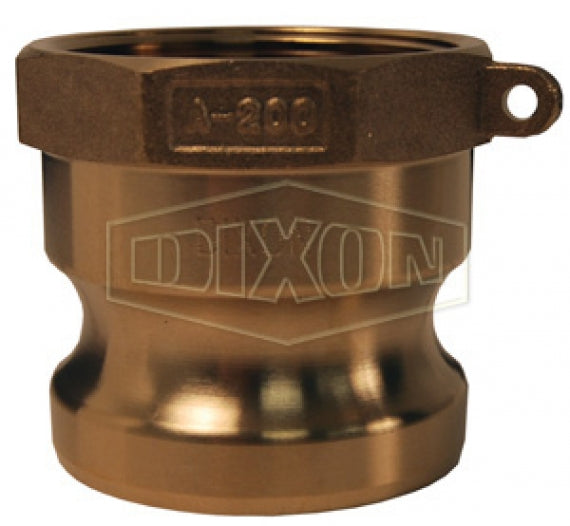

G125-A-BR by Dixon Valve | Global Cam & Groove Adapter | Type A | 1-1/4" Adapter x 1-1/4" Female NPT | ASTMC38000 Forged Brass

Name: G125-A-BR by Dixon Valve | Global Cam & Groove Adapter | Type A | 1-1/4" Adapter x 1-1/4" Female NPT | ASTMC38000 Forged Brass
Brand: Dixon
SKU: G125-A-BR Dixon
Price: 14.48 USD
Availability: InStock

Save $1.33

$15.81

$15.81 - $15.81

$15.81

$14.48

$14.48 - $14.48

$14.48

Dixon Valve
Global Cam & Groove | Type A Adapter | Adapter x Female NPT

Designed for use with liquids.

Quantity

Specifications for Variant SKU: G125-A-BR Dixon
Shape (Orientation):	Straight
Cam Type:	Type A
Ends Configuration:	1-1/4in Female NPT, 1-1/4in Male Cam & Groove
Material(s):	Brass

Safety Notes:
Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating is based on the seal of the mating part. Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. No standard exists for the 1/2", 5", and 8", and generally these sizes do not interchange with Dixon, Boss-Lock, or other manufacturers' products.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
Designed to interchange with all products produced to A-A-59326D.

A380 Permanent Mold Aluminum Part Number	ASTMC38000 Forged Brass Part Number	316 Investment Cast Stainless Steel Part Number	Size	Max. Operating Pressure
G50-A-AL*	G50-A-BR*	G50-A-SS*	1/2"	150 PSI
G75-A-AL	G75-A-BR	G75-A-SS	3/4"	250 PSI
G100-A-AL	G100-A-BR	G100-A-SS	1"	250 PSI
G125-A-AL	G125-A-BR	G125-A-SS	1-1/4"	250 PSI
G150-A-AL	G150-A-BR	G150-A-SS	1-1/2"	250 PSI
G200-A-AL	G200-A-BR	G200-A-SS	2"	250 PSI
G250-A-AL	G250-A-BR	G250-A-SS	2-1/2"	150 PSI
G300-A-AL	G300-A-BR	G300-A-SS	3"	125 PSI
G400-A-AL	G400-A-BR	G400-A-SS	4"	100 PSI
G500-A-AL*	G500-A-BR*	-	5"	75 PSI
G600-A-AL	-	G600-A-SS	6"	75 PSI
G800-A-AL*	-	-	8"	50 PSI

* No standard exists for the 1/2", 5", and 8", and generally these sizes do not interchange with other manufacturers' products.
